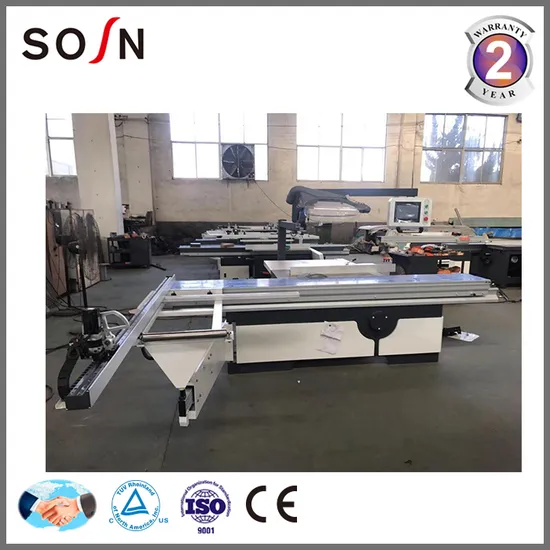

High Precision CNC Furniture Sliding Panel Table Saw
| US$7,500.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CNC-32TA
Power Type
Electric
Layout
Horizontal
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
1 Year
Transport Package
Wooden Case
Trademark
SOSN
Origin
China
HS Code
84659100
Production Capacity
200 Sets /Month
Product Description
Automatic cnc panel saw CNC-32TA(Servo motor for two side ways can be selected)
Feature:
1. Automatic control for saw blade up and down.
2. Automatic control for saw blade tilt angle.
3. Automatic rip fence.
4. Cnc control for big guide ruler.
5. Linear guide inner structure, stable and precision.
6. Altendorf type sliding table, 3200*410mm.
7. European dust cover, Freud saw blade.
Technical parameter:
| Dimension of sliding table | 3200*410mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300(250-400)mm |
| Height of cut (300mm) | 80mm |
| Height of cut with saw blade 300mm at 45 degree | 60mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45 and 90 degree |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 7000-8000rpm/min |
| Scoring spindle diameter | 20mm |
| Scoring motor | 1.1kw |
| Gross weight (with wooden package) | 950kg |
| Packing size of the machine body(L*W*H) | 2200*1150*1100mm |
| Packing size of the sliding table(L*W*H) | 3350*480*320mm |
This CNC panel saw is all automatic except scoring saw and sliding table.
Details description:
| The heavy-duty body, the gantry milling process is stable and the surface is sandblasted and plastic sprayed, which is simple and elegant without paint falling, ensuring the durability of the machine. | |
| Automatic saw blade up and down | |
| A type sliding table, 410mm width | |
| Automatic degree setting the height of the saw blade, the cutting angle, the position of the ruler, and the position of the ruler are accurately displayed on the LED panel. | |
| Automatic rip fence | |
| cnc control position ruler | |
| Aluminum shell copper core 5.5kw+1.1kw motor, fast heat dissipation to ensure long-term processing and operation, equipped with linear guide electric lifting structure, making it stable and improving cutting accuracy, electric lifting structure improves production efficiency. | |
| Equipped with European dust hood and pneumatic press device. |
Should you have any need of this machine, please contact me~
Livia :-)
