1.4X0.8X1.6m Machine Small Format Roll to Roll Digital Label Printer
| US$55,000.00-65,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
VP320C
Structure
Rotary Letterpress
Color & Page
Multi-Colour Printing Press
Usage
Paper Printer, Label Printer
Automatic Grade
Automatic
Printing Interface
USB2.0
Printing Speed
7.26m Per Minute
System Supported
Windowsxp64
Printing Section
4
Max. Roll Diameter
450mm
Print Width
304mm
Technology
4 Color Cmyk LED Technology
Machine Dimension
1400*810*1600mm
Transport Package
Standard Export Package
Specification
304mm
Trademark
GCM
Origin
China
HS Code
8443322900
Production Capacity
20 Sets/Month
Packaging & Delivery
Package Size
1700.00cm * 1150.00cm * 1570.00cm
Package Gross Weight
520.000kg
Product Description

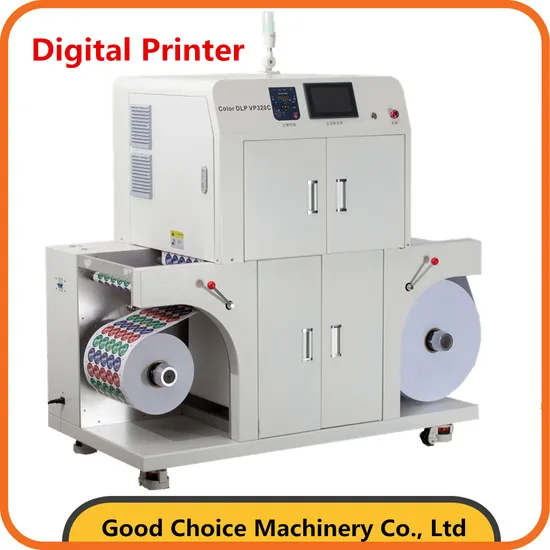

Color DLP VP320C digital label printing machine Detailed PhotosSubstrate It can print lots of media: paper, kraft, PET,PP...
The material thickness from 60um-280um.
Our Advantages 1 . Low temperature LED toner technology.
2 . CMYK 4 color can printer full color image.
3 . 1200*2400dpi can get high quality image.
4 . Roll to roll label printing for production line.
5 . Economy machine with low printing cost.
6 . It can print lots of media, paper, kraft, PET,PP...
7 . The material thickness from 60um-280um.
Technical Parameter:
| Technology | 4 color CMYK LED technology | |||
| Print speed | 7.26m per minute | |||
| Print width | 304mm | |||
| Media width | 210-320mm | |||
| Resolution | 1200*2400dpi | |||
| Media thickness | 60-280um | |||
| Max. roll diameter | 450mm | |||
| Machine dimension | 1400*810*1600mm | |||
| Machine weight | Approx. 423kgs | |||
| Power supply | 200-240V 1100W | |||
| Toner K | print 26 sheets A4 with 5% coverage | |||
| Toner CMY | print 18.5K sheets A4 with 5% coverage | |||
| Drum | 100K sheets A4 | |||
| Waste box | 300k sheets A4 | |||
| Transfer cleaner | 200k sheets A4 | |||
| Transfer roller | 200k sheets A4 | |||
| Developer CMYK | 480k sheets A4 | |||
| Developer house | 480k sheets A4 | |||
| Fuser | 480k sheets A4 | |||
| Transfer belt Assy | 480k sheets A4 | |||
Optional:
Related LABEL DIE CUTTING MACHINE
Packaging & Shipping Overseas shipping packing : wooden case
