China New Modern and Technological Kinkai Air Source Heat Pump Herbs Drying Machine/Dryer/ Dehydrator 2021

Product Description

China New Modern and Technological Kinkai Air Source Heat Pump Herbs Drying Machine/Dryer/ Dehydrator 2021
Product Description

Condition	new	Place of Origin	Guangdong, China
Brand Name	KINKAI	Model Number	Single JK12RD
Type	dryer	Voltage	380V
Power	15KW	Weight	540KG
Dimension(L*W*H)	2100*1460*1590mm	Certification	CE, CCC, ISO
Warranty to core components	1 year	Noise	75dB
Heating source	air heat pump	Heating capacity	42KW
Dehydration capacity	50L/H	Temperature	-10-45ºC
Control system	automatic, intelligent	Product capacity	300 to 2500 kg per batch
New technology	second waste heat recovery technology	Functions	drying / cooling / dehumidify
Control system	automatic, intelligent	Packaging Details	pywood
Delivery	sea	Port	Guangzhou/Shenzhen/HongKong
MAQ	1 piece	Material	304stainless Steel/steel

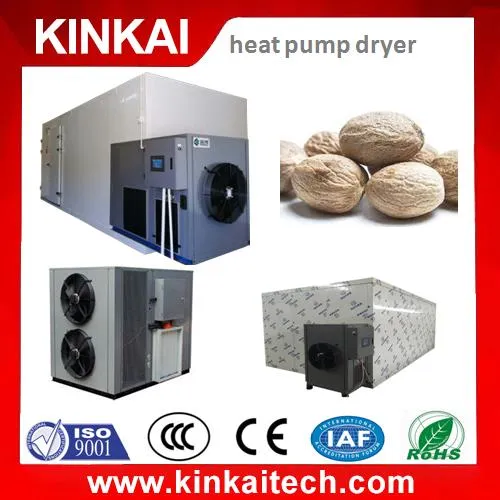

KINKAI Heat pump hot air drying machine
KINKAI heat pump dryer is a device that transfers heat from a colder area (ambient temperature) to a hotter area (drying chamber)
by using mechanical energy, as in a refrigerator.
Working princple of heat pump dryer
1)Dryer evaporator of refrigerant absorb the air from outside.
2)Then compressor works that make the air temperature rise.
3)Heat exchanger change the hot air into drying chamber.
4)Final materials will be dried by the hot air circulating in drying chamber.
Functions
1)Drying
2)Drying+dehumidify
3)Cooling
Solutions

Model No.	Capacity	Chamber Size	Trolleys qty	Remarks
Single JK03RD	300KG/Batch	3160*2070*2200mm	6 trolleys	Trolleys size: 810*670*1800mm Default design: Each trolley 16layers, each layer including 1pcs trays Tray dimension: 750*660mm Total 16pcs trays for one trolley
Double JK03RD	800KG/Batch	7510*2070*2200mm	16 trolleys
Single JK06RD	600KG/Batch	5700*2170*2200mm	12 trolleys
Double JK06RD	1200KG/Batch	10530*2170*2200mm	24 trolleys
Single JK12RD	1000KG/Batch	5810*3230*2200m	20 trolleys
Double JK12RD	3000KG/Batch	10750*3230*2200mm	40 trolleys

Warm prompt: We can make any drying chamber sizes as your required.
Application
Packaging&Shipping&Payment
Our Services
Technical service
1.We calculate the capacity and recommend the best models.
2.We supply you the professional refrigeration technical support and electronic technical support for your installation, debugging and operation.
3.We supply the spare parts and technical support in & after the warranty time.
4.We supply the training course to your workers at our factory if you need.
After-sales service
1.Technical support for your installation, operation and maintenance.
2.One year's warranty, and you can pay for extended warranty.
3.Spare parts and technical support at most economic prices after the warranty. Company Profile
Certifications
FAQ
1.Are you trading company or manufacturer?
Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
2.What's your payment terms?
1)T/T
2)L/C (for container order only)
3)Western Union (for sample order & parts)
3.What's your MAQ?
Our MAQ is 1 piece.
4.What is your warranty?
12 months except the spare parts,
5.What price terms you offer?
We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
6.How long is your delivery time?
Generally it is 7-25 days if the goods are in stock.
7.Will you send engineers to install the plant?
Of course yes,but at an extra cost will be paid by customers. Or you can get local contractors to do the commissioning and we send one supervising engineer.
8.Do you have some foreign customers using your equipments?
Yes , we have customers all over the world.
9.How can I know your machine works well?
Before delivery, we shall test the machine working condition for you.
If you are interested in our heat pump dryer, welcome to contact us for more information, such as catalogue, video, etc.
