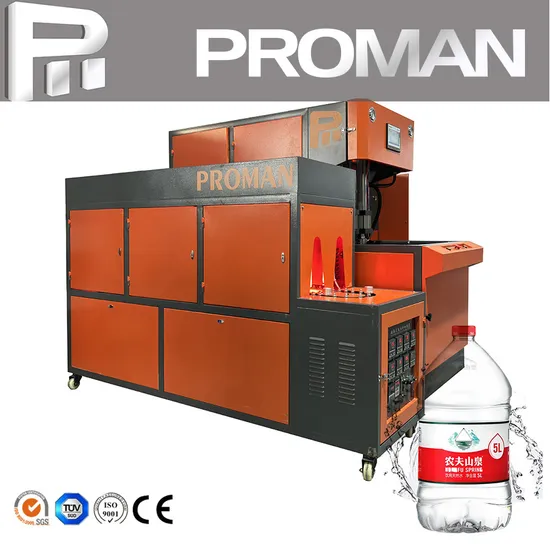

Two Cavities Semi Automatic 3-10L 5liters Pet Bottle Container Blow Molding Machine

Product Description

Two Cavities Semi Automatic 3-10L 5Liters PET Bottle Container Blow Molding Machine Semi-automatic bottle blowing machine adopts direct pressure, icrocomputer control, two step blowing bottle.
The main blow tube blank PET mineral water bottles, beverage bottles, edible oil bottles, pharmaceutical plastic bottles, pesticide bottles, cosmetic bottles, etc..
It has various cavities and the maximum capacity of the products is 20L.
The gas path is designed to separate the gas and blowing, adopting low pressure(0.4-0.8Mpa) mould clamping, mould locking, sealing, stretching and high pressure(3-3.5Mpa) blowing form, and the gas-liquid locking structure, to not only ensure the clamping and locking action smoothly, also ensure the safety of mould and blowing quality, as a result can save the bottle perform material.
Advantages of Our Bottle Blow Molding Machine 1. Produce bottle from 5L to 20L(1-2 cavity)
2. Output capacity up to 180 for 20L using one-cavity blow mold
3. Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01second
4. Equipped with special designed air storage unit
5. Using Infrared preform heater
6. Independent Temperature Control for different heating lamp to get ideal preform heating results
7. Heating lamps are adjustable in directions to suit various preforms
8. Operated only by one person without special training
9. Simple installation & startup adjustment
10. Waste rate of finished bottle is less than 0.2%
Machine Details
Line Flow Chart PET preform→autoloader→reheater →molding→ bottles
Technical Parameters

Model	Item	Unit	PM-12	PM-8Y	PM-1500	PM-5-2	PM-1-20
Theoretical output		Pcs/H	500	900	1800	800	90
Product	Volume	L	5.0	2.0	2.0	7.0	20
	MAX.Height	mm	360	360	360	450	550
	MAX.Diameter	mm	120	105	105	250	300
Mould	Number of cavities	/	1	2	4	2	1
	Mould piate dimension(L*H)	mm	490*470	490*405	490*405	520*520	620*620
	Mould thinkness	mm	250	220	220	300	380
	Mould opening stroke	mm	220	180	180	280	380
Electrical	Power	/	220_380V/50_60HZ
	Total power	KW	11	11	21	30	36
	Heating power	KW	10	10	20	31	37
Machine	Main body dimension (L*W*H)	M	1.5*0.65*2.0	1.5*0.65*2.0	1.5*0.65*2.0	2.0*0.75*1.8	2.1*0.75*1.6
	Main body weight	KG	600	550	550	800	900
	Pre-heater(L*W*H)	M	1.5*0.65*1.5	1.4*0.65*1.5	1.8*0.65*1.5	2.2*0.7*1.6	2.7*0.7*1.6
	Pre-heater weight	KG	300	300	350	380	400

Our Service
Customized service We can design the machines according your requirements(material,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years. After-sales service 1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly 2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well. 3.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.4.We provide one year warranty 5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier). 7.12 Months guarantee and life-long technical support.8.Your business relationship with us will be confidential to any third party. 9.Good after-sale service offered, please get back to us if you got any questions. Quality Control We have separate quality control department, which make sure the raw materials are qualified,also ensure the machine running smoothly. If you want to know more information about the product,Send inquiry to us, we will solve any of your problems and send you running video for reference.
Packaging & Shipping
Company Information
Zhangjiagang Proman Machine Co., Ltd. is a production manufacturer and exporter in China, specialized in water treatment plants,beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.Our factory was established in the year of 1998, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineers of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.Besides, we have our own designs for the bottles.Proman Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply!
FAQ 1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Bottle Blow Molding Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
