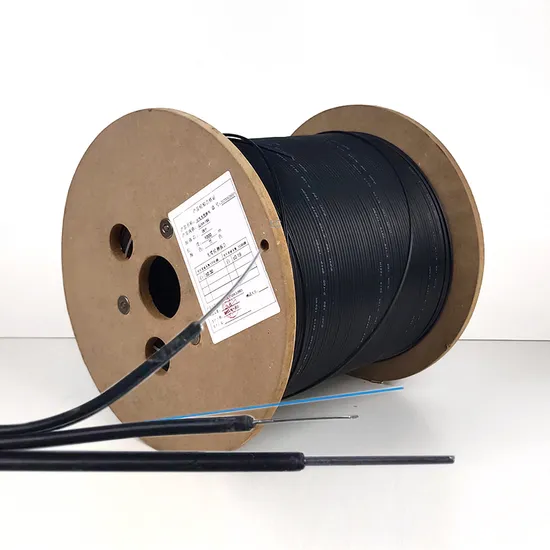

Single Mode Fiber Cable 1km Price Gjyxch GJYXFCH Fiber Optic Cable Price List FTTX FTTH 1 2 4 Core G657A2 Fiber Optic Drop Cable
Basic Info.
Model NO.
GJYXCH
Connection Structure
SC
Material Shape
Flat Wire
Allowed Lateral Pressure
>1000(N/100mm)
Allowed Tensile Strength
1000N<10000N
Core
Single Core
Certification
CE/RoHS/ISO9001
Brand
Feiboer
Sheath Material
LSZH
Product Name
Optic Fiber Cable
Jacket Material
LSZH HDPE
Color
Black/White/Customized Color
Messenger Wire
Steel or FRP
Key Words
Fiber Cable
Brand Name
Feiboer or OEM
Package
Wooden Drum and Carton/Customized
Fiber Type
G657A1
Number of Conductors
2
Transport Package
Wooden Drum
Specification
1KM
Trademark
FEIBOER or OEM
Origin
Guangdong, China
HS Code
8544700000
Production Capacity
500000km/Year
Packaging & Delivery
Package Size
31.00cm * 31.00cm * 24.00cm
Package Gross Weight
20.000kg
Product Description
Self-supporting Outdoor Steel Messenger Wire FRP G657 FTTH Drop Fibra Optica 2 4 1 core fiber optic cable Product Description Product Characteristics• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Application
• Indoor and outdoor wiring system
• FTTH, terminal system
• Indoor and outdoor shaft,building wiring
| Fiber count | 1/2/4 |
| Fiber Type | G657A1/A2 |
| Strength member | Steel/FRP |
| Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti |
| Cable Diameter dimensions | 5.0*2.0mm |
| Operation temperature range | -40 ºC to + 70 ºC |
| Installation temperature range | -5~+50ºC |
| Transport and storage temperature range | -40 ºC to + 70 ºC |
| Tension Load (N) | Short term :1000N Long term :600N |
| Crush Load(N) | Long term 1000 N/100mm Short term:2200N/100mm |
| Minimal installation bending radius | 30 x OD |
| Minimal operation bending radius | 15 x OD |
| Cable marking | The marking length 1meter apart , as required |
FTTH Drop cable
