CE Certificate Reflective Marker Solar Glass Road Stud

Product Description

Product Description

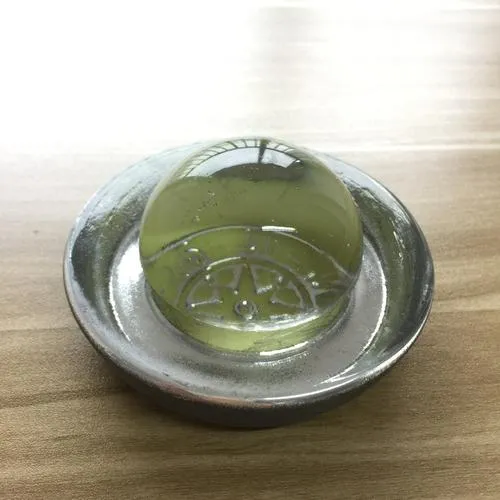

Glass Road Stud
Glass reflective spike, also known as cat eye reflective spike, glass spike, night spirit, etc., is made of high borosilicate glass as raw material, composed of two glass hemispheres with different diameters. The exposed ground is the hemisphere, receiving incident light source in any direction, and the reflective effect is the same in the 360° range.It has strong surface hardness and abrasion resistance.The protruding part is semicircular with no edges and corners, which makes the traffic smooth. The vehicle has vibration prompt function when passing through the lane at high speed.
Repeated contact with the vehicle wear does not affect the reflective effect.In the process of production through grinding, polishing processing, surface smoothness of optical 3-4 level, with functions of self-cleaning, cleaning, no dust, no sediment, do not need to be clean.
Product Parameters

Name	Glass Road Stud
Item Number	RSG-RS-G-03
Shell materials	Tempered Optical Glass of Highly Crystal Silicon
Reflect size	100*50mm
Retro Reflective Material:	Silvering Material Protective
Measurement	Diameter100mm*Height50mm
Protective material	Metallic Compound
Hardness	170±5
Retro Reflective Angle	360°
Colour	White /Yellow /Red
Weathering Resistance Properties	>16280h
Anti-Collision Resistance	≥20tons
Product N. W.	500g±10
Packaging Quantity	24pcs/carton
Carton size	320mm*230mm*230mm
Gross	13kg
Net Weight	12kg

Manufacturing Technique&Detail
1. Reflective no dead Angle.
Emergency section warning function, for sharp and dangerous curved road has 360° reflective guidance function.
2. High visibility.
Special role of road condition guidance, 360° glass reflective spike, in rainy days due to the reflective line submerged by water lost reflective effect, in fog visibility is very low, but still can maintain the reflective effect.
3. In special sections of the tunnel, when the illumination is reduced by 50% or the power is cut off, the omni-directional reflection effect is also maintained to remind the driver to drive prudently.
4. Safety tips for complex road sections: guide drivers to drive safely on urban roads (triangular crossings), complex intersections, community passages and underground parking lots.
5, Glass reflective spike weather resistance, long life: excellent wear resistance, good chemical stability;
Tire and sand corrosion resistance;
6, Road resistance may encounter various solvents, oil corrosion;
It is also highly resistant to acid rain and salt fog, so it can be used for a long time in a variety of severe road environments.
Safe, reliable, strong warning function: the glass spike material is high crystal silicon reinforced optical glass coated with silvery-white reflective layer, its reverse reflection coefficient up to 80MCD/LX or above.
High compressive strength: the glass spike has a pressure resistance of over 160KN, and has been installed in a large area on the test road section for more than a year, and has been kept intact by rolling tests including large container trucks.
