34 Ton Hyundai Crawler New Hydraulic Excavators Hyundai Hyundai Hx340HD 33ton Crawler Excavator with Breaker on Sale
Basic Info.
Model NO.
HX340HD
Usage
Mining Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE
Condition
New
Operating Weight
33ton
Power
194kw
Peak Torque
1150 N·m at 1300 Rpm
Swing System Lubrication W
Grease-Bathed
Max Digging Height
10050mm
Min. Ground Clearance
500mm
Boom Length
6450mm
Arm Length
3200mm
Track Shoe Width
800mm
Max. Digging Reach
11150mm
Max. Digging Reach on Ground
10950mm
Max. Digging Depth
7360mm
Max. Vertical Wall Digging Depth
6330mm
Transport Package
Bulk Ship
Specification
9120*2990*2180mm
Trademark
HYUNDAI
Origin
Jiangsu
HS Code
8429209000
Production Capacity
3000
Packaging & Delivery
Package Size
930.00cm * 300.00cm * 220.00cm
Package Gross Weight
34000.000kg
Product Description

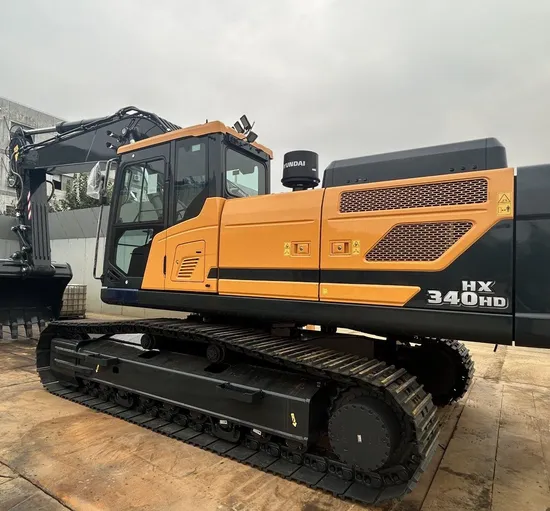

Product DescriptionHYUNDAI HX340HD 33ton crawler excavator with breaker
33,000kg operate weight1.44cbm bucketCUM--MINS 6CT;194kW; Euro 2; Mechanical fuel system KAWA--SAKI hydraulics
SUPERIOR PERFORMANCE·Heavy Duty Boom & Arm·New Variable Power Control·HM8.3 ·Reinforced Bucket and Bucket Linkage·Powerful and Preciser Swing Control·Strong and Stable Lower Frame·Single Layer Cooling System·Minimization of Shock and Vibration through Cab Mounting System
COMFORTABLE OPERATION·New Front Side Air-conditioning System·Smooth Travel Pedal and Foot Rests·Improved Intelligent Display·Easy-to-Reach Control Panels·Wide Cab with Excellent Visibility·Highly Sensitive Joystick and Easy Entrance·Wide, Comfortable Operating SpaceSERVICEABILITY AND EASY MAINTENANCE·Easy to Maintain Engine Components·Centralized Electric Control Box and Easy Change Air Cleaner Assembly·Side Cover with Left & Right Swing Open Type·Large tool box for extra storage·Highly efficient Hydraulic Pump·Hi-MATE (Remote Management System)Load Sensitive Hydraulic System Load sensing steering directs power through the steering system only when the steering system needs the force. When not steering, more engine power is available to generate breakout force, lift force, and results in reduced fuel consumption.
Large Capacity Fuel Tank for Long Working Time Large capacity fuel tank (290 ℓ) offers long working time.
Large Displacement Booster Pump Braking system has equipped large displacement booster pump ensure high reliability and safety
Product Parameters
| Parameters | |
| Operation Weight : | 33000kg |
| Bucket Capacity : | 1.44m³ |
| Engine Model: | HM8.3 |
| Engine Power: | 194 kW (260 HP) |
| Travel Speed: | 3.6-6.4km/hr |
| Swing Speed: | 11.2rpm |
| Grade Ability: | 35degree |
| Dimensions | |
| Boom Length: | 6450mm |
| Tumbler Length: | 4940mm |
| Ground clearance of counterweight | 1200mm |
| Tail swing radius | 3570mm |
| Rear-end length | 3510mm |
| Overall width of upperstructure | 2980mm |
| Overall height of cab | 3145mm |
| Min. ground clearance | 500mm |
| Track gauge | 2680mm |
| Overall height of guardrail (Opt) | 3350mm |
| Overall length | 11340mm |
| Overall height of boom | 3540mm |
| Track shoe width | 600mm |
| Overall width | 3280mm |
| Operating range | |
| Max. digging reach | 10500mm |
| Max. digging reach on ground | 10290mm |
| Max. digging depth | 6660mm |
| Max. digging depth (8' level) | 6450mm |
| Max. vertical wall digging depth | 5660mm |
| Max. digging height | 10050mm |
| Max. dumping height | 6950mm |
| Min. swing radius | 4440mm |
