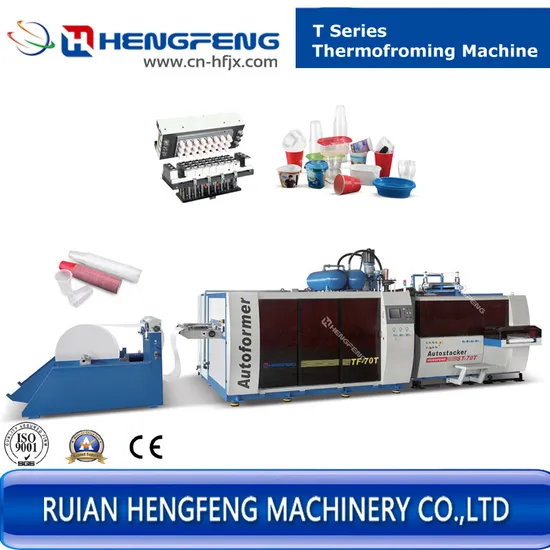

Intelligent Plastic Cup Thermoforming Machine (HFTF-70T-H)
| US$200,000.00-300,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HFTF-70T-H
Molding Method
Thermoforming
Automatic Grade
Automatic
Condition
New
Warranty
1 Year
Customized
Customized
Logo Forming
with Logo Forming
Raw Material
PP, PS, Pet, PVC, PLA, etc.
Change Mould
Yes
Driven Type
Electric, Pneumatic, Mechanical
Shaping Mode
in Molding
Application
Cup, Bowl, Square Boxe, Ice-Cream Cup etc.
Max Forming Area
680*320mm
Transport Package
Sea-Worthy Packing
Specification
CE, ISO, ISO9001
Trademark
HENGFENG
Origin
Ruian, Zhengjiang, China
HS Code
8477590000
Production Capacity
42cycles/Min
Product Description
Intelligent Plastic Cup Thermoforming Machine (HFTF-70T-H)Application
Thermoforming Machine are mainly produce upscale plastic containers like cups,bowls,square boxes etc. It is suitable for PP. HIPS. PVC and PET material.
Feature
Cutting in mould
Rapid mold changing device and easy maintenance
Stability and high speed movement is guaranteed by cam driving system
Screen digital setting and storage of machine parameter
Forming with 7bar air pressure,cutting in mould
More sanitary and labor-saving with automatic counting and stacking
Plug and feeding driven by Servo motor
For making plastic cup and suitable material such as PP,PS,PVC, PET,PLA, etc.
Main Specification
| 1- Max. Forming Area | 685×320mm |
| 2- Max. Forming Depth | ≤180mm |
| 3- Clamping Force | 400KN |
| 4- Sheet Width Range | 550-720mm |
| 5- Sheet Thickness | 0.35-2.2mm |
| 6- Max. Rolling Diameter | Φ1500mm |
| 7- Air Pressure | 0.7-0.85mpa |
| 8- Water Consumption | 50L/min |
| 9- Air Consumption | 3000L/min |
| 10- Max.Dryer Speed | 42 Cycles/min |
| 11- Power (Three Phase Four Wire) | 3×380V+N+PE.50HZ |
| 12- Heating Power | 130KW |
| 13- Main Motor power | 11kw |
| 14- Feeding Motor Power | 4.4kw |
| 15- Stretching Servo Motor Power | 11kw |
| 16- Machine Weight | 12500kg |
| 17- Dimension | 12500×3650×3550mm |
