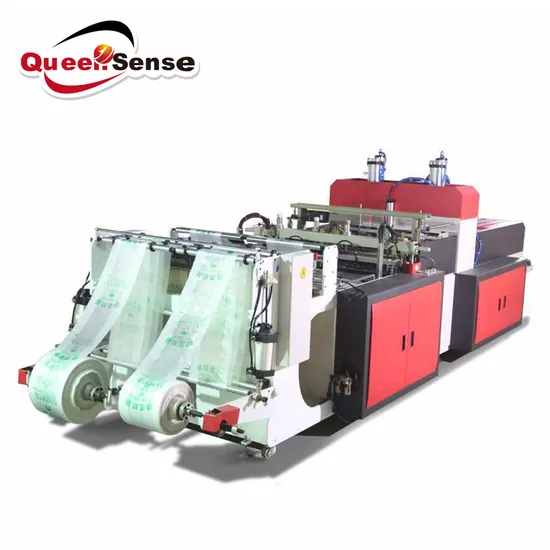

High Speed Biodegradable Plastic Shopping T-Shirt Bag Making Machine
Basic Info.
Model NO.
DFHQ-450*2
Voltage
220V
Seals Mode
Trilateral Seals
Speed
Medium
Continuous-Rolled
Yes
Sealing & Cutting
Heat-Sealing Cold-Cutting
Layer
Single
Machine Type
Sealing Machine
Computerized
Computerized
Type
Plastic Bag Making Machine
Machine
Ytrql
Size
1999mm
High Speed
30m/Min
Weight
1600kgs
Transport Package
Wooden Box
Specification
CE
Trademark
QUEENSENSE
Origin
China
HS Code
8477309000
Production Capacity
30m/Min
Product Description
Characteristics :This machine is applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It adopts PLC control, double servo(step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, punching holes and transporting only in one process. It is of high degree of automation and good economic result.
Main Technical Variables:
| Model | DFHQ-350X2 | DFHQ-450X2 |
| Max. Bag-making width | 300mmX2 | 400mmX2 |
| Max.Bag-making length | 650mm | 650mm |
| Bag-making thickness | 0.015-0.035mm | 0.015-0.035mm |
| Bag-making speed | 250pcs/minX2 | 250pcs/minX2 |
| Air pressure | 5kg/cm2 | 5kg/cm2 |
| Total Power | 7kw | 9kw |
| Weight of machine | 1400kg | 1600kg |
| Overall dimensions | 6000X1400X1600mm(L X W X H) | 6000X1400X1600mm(L X W X H) |
