Taijia High Quality Surveying Testing Rebar Locator ZD310 rebar detector

Product Description

Product Description

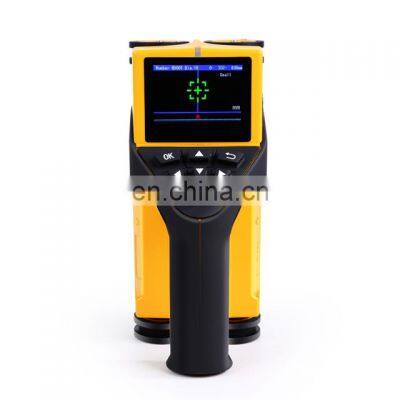

Product DescriptionZD-31 Grid Scan Concrete Steel Bar LocatorZD-31 Integrated Rebar scanner are mainly used for detecting the internal reinforcement position, the protective layer thickness,reinforcement spacing and diameter of rebar. It can accurately draw the distribution map of the whole rebar, to provide test data with high precision andhighspeed; the integrated structure of the host and the sensor coil, making it is convenient and quick when carrying and field operation; It is characterized in coil structure design, faster speed, higher accuracy , stronger resolution.Details ImagesItemsValuesApplicable range of Rebar (mm)φ6~φ50Protective layerSmall range:1~80Large range thickness range(mm):5~185Screen320*240Power supplyBuilt in high capacity lithium batteryWoking hours≥16hStorage200K Measuring point of steel barOperationSilicone keypadSize219*92*106cmFeaturesMain functions:1. Accuractly measure the thickness of protective layer of rebar;2. Locate the postion, trend and distrution of steel bars;3. Measure the protective layer of steel bar and estimate the diameter of steel bar;4. Storage, view and transmission of detection data.Related ProductZBL-R660 Integrated Rebar scannerZBL-R660 is mainly used to test the reinforced concrete structure and is capable cover thickness and rebar diameter on the reinforced concrete surface.ZBL-R630A Rebar Locator (scanner edition)ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation and distribution of rebar by using an electromagnetic induction method. ZBL-R800 Multifunctional Rebar DetectorZBL-R800 Multifunctional Rebar Detector is a portable, integrative and multifunctional one combine the functions of both scanner for rebar test and detector for rebar rust test.Contact UsTrade terms1. Warranty: 18 Months.2. Deliver Time: 7 working days after payments received.3.Ready to ship out within bysea,TNT,DHL,FedEX,as soon as we receive payment.4. We accept T/T,Western Union,PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office at TEL:86-411-39685079Whatsapp:+8615541112235web:/
