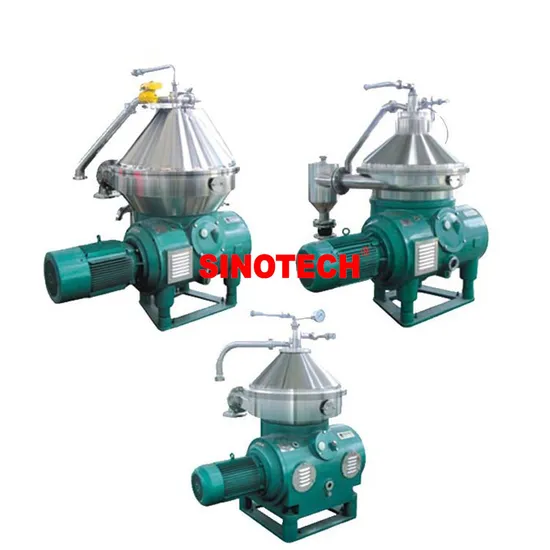

Factory Directly Supply Disc Stack Centrifuge Separator Palm Oil OEM Centrifuge

Product Description

Product Description The Disc Separator is large output, and advanced automation equipment designed for the cosmetics industry. It is suitable for separating low-solids suspension with a small difference in proportion between immiscible liquids. This equipment is essential for industries such as pharmaceuticals, chemicals, biological products, and beverages. The principle behind the Disc Separator is based on centrifugal force, which separates materials of different proportions by applying different forces, achieving efficient separation. The DHC self-discharging disc separator is a self-cleaning separator controlled by an inverter, PLC, and a set of electrical components for easy slagging.
Application Oil: Clarification and Separation for Vegetable Oil, Animal Oil, Fish Oil, Crude Oil, all kinds of fuel oil and Luge.
Food: Juice Clarification, Beer Separation, Fermented liquid Clarification and Separation.
Pharmaceutical Industry: Extraction for Vaccine, Mycelium, Glucose, Insulin, Antibiotics, Vitamins.
Chemical Industry: Recovery for Dry cleaner solvents, Galvanized liquid, Aluminum sulfate solution, Tar water mixture, PVC,
Polypropylene, Argentum (In the film processing), Catalyst and Magnet.
Traditional Chinese medicine: Clarification and Separation for Plant Extraction
Feature 1. The drum has undergone precise dynamic balance verification, ensuring smooth operation, low vibration, and low noise during operation.
2. All components in contact with materials are made of stainless steel material, which can effectively reduce the corrosive effect of separated materials and meet food hygiene requirements. 3. Equipped with a stationary light and heavy phase discharge centripetal pump. The separated light and heavy two-phase materials are respectively output from the light and heavy phases at the top of the drum to the central pump, with the light phase entering the next process. 4. The power transmission adopts a hydraulic coupling and a pair of spiral speed increasing gears, which use liquid to transmit power, ensuring stable speed increase and overload protection. 5. Equipped with automatic control cabinet. It is composed of industrial computers and machine overload automatic protectors, with a high degree of automation, strong adaptability to process adjustment, convenient adjustment, and can greatly reduce the operating intensity of workers. Working Principle There is a set of disc shaped parts that are stacked together inside the drum - namely the disc. There is a small gap between the discs. The suspension (or emulsion) is fed into the drum from the feed pipe at the center of the drum. When the suspension (or emulsion) flows through the gap between the discs, solid particles (or droplets) will settle on the discs under the action of the centrifuge to form sediment (or liquid layer). The sediment slides along the surface of the disc and separates from the disc, accumulating in the area with the largest diameter inside the drum. The separated liquid is discharged from the drum through the outlet.The function of discs is to shorten the settling distance of solid particles (or droplets) and expand the settling area of the drum. The installation of discs in the drum greatly improves the production capacity of the separator. The solid accumulated in the drum is automatically discharged from the drum without stopping the machine through the slag removal mechanism.
Technical parameter

Model	DHC220	DHC270	DHC360	DHC470	DHC550
Capacity(L/H)	1000	2000	3000	7000	>10000
Motor(kw)	4	4	7.5	15	22
Weight (kg)	580	600	1000	1720	2500

Detailed Photos

Our Workshop
Our customer
