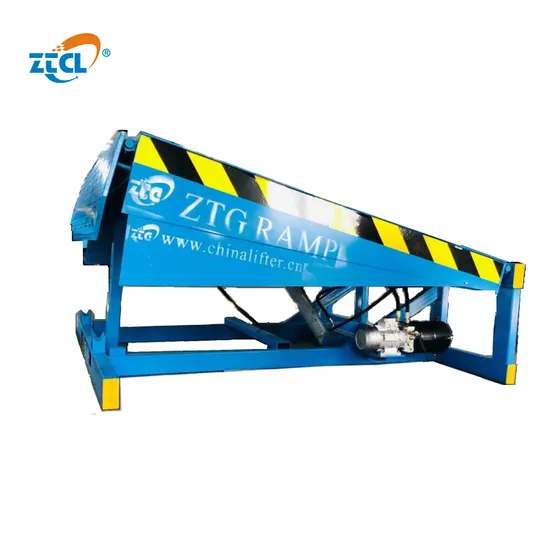

Ztcl 13.6 Tons Warehouse Loading Dock Leveller/Adjustable Loading Dock Ramp for Sale

Product Description

Product Description
Dock Leveler uses a hydraulic power unit to lift the upper main panel of the dock leveler through main oil cylinder, and a small auxiliary oil cylinder pushes out the lip plate. It is very useful when dock height and truck height is different,and through the principle of the dock leveler's self-weight drop, the lip plate is lifted to the rear of the truck to complete the entire action.Hydraulic dock leveler is currently the most commonly used and also the most widely used loading and unloading platform, with stable performance, simple operation, stable operation, low maintenance rate and easy repair.
Product Parameters

Model	Load Capacity (T)	Platform (mm)	Lip size (mm)	Travel (mm)		Power (kw)	Voltage
ZTDCQG-8	8	2000*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-8	8	2500*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-8	8	3000*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-10	10	2000*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-10	10	2500*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-10	10	3000*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-12	12	2000*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-12	12	2500*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-12	12	3000*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-15	15	2000*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-15	15	2500*2000*600	400	+400	-300	1.1	380V50hz
ZTDCQG-15	15	3000*2000*600	400	+400	-300	1.1	380V50hz

Detailed Photos
Anti slip countertop Motor Strong bottom frame

Hydraulic cylinder Control box Bumper block
Our Advantages
1.All-hydraulic drive, easy operation
2.Lip plate is connected to the ramp with long axis, high-strength and reliable
3.Imported sealing part to guarantee good sealing performance of hydraulic system
4.Modular hydraulic station with good sealing quality
5.High strength "U"-shape design to ensure big load capacity without deformation
6.Skirt board is designed to prevent damage of toes
7.Supporting bar is arranged for internal maintenance
Packaging & Shipping

FAQ
Q1. What about the delivery time?
Answer: It usually takes about 10 working days after we receive the deposit.
Q2. What kind of payment do you support?
Answer: T/T, L/C, West Union, T/T is usually.
Q3. How to proceed an order for the lift?
Answer: Firstly, tell us your requirements, if you can send a photo where you will use the lift, it will be better.
Secondly, we send you our suggestions and quote according to the practical.
Q4. How to transfer the lift machine?
Answer: It is usually shipped by sea. Plywood package and LCL in a 20' container.
Q5. Is it OK to print my LOGO on the lift?
Answer: Yes. Please inform us formally before our production and send us your high pixel LOGO.
Q6. How can I get the after-sales service?
Answer: Contact with us if you have any question or need professional support. We will try to solve your problem in 24 hours, and arrange the delivery of spare parts in 48 hours.
