1064nm Single Model Mini Size 2W Optical Fiber Isolator for Fiber Lasers Cable Connector

Product Description

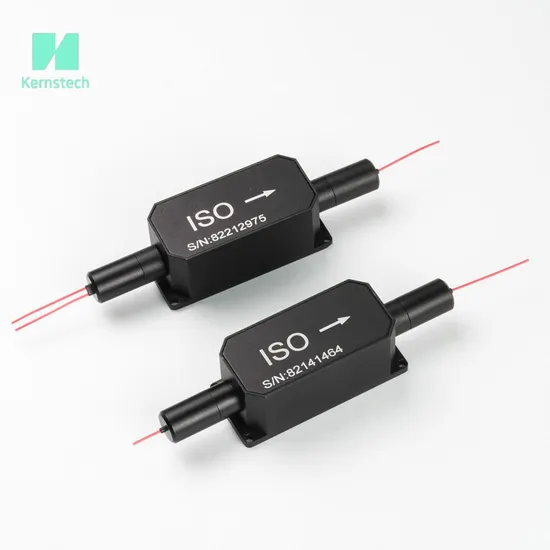

1064nm Single Model Mini Size 2W Optical Fiber Isolator For Fiber Lasers
Product DescriptionFeatures
Low Insertion LossHigh Return LossHigh Extinction RatioHigh Stability & ReliabilityHigh lsolationApplications
Communication SystemsTest InstrumentFiber SensorsProductDevelopmentSpecifications

Parameter	unit	Parameter
Grade		Single	Dual
Center Wavelength	nm	1064
Operating Temperature Range	nm	±5
Typ. Peak Isolation @23ºC	dB	35	50
Min.Isolation @23ºC	dB	27	45
Max.Insertion Loss@23ºC	dB	1.7	3.8
Max.Insertion Loss@23ºC&Input Power300 mW	dB	2.0	4.0
Max.Insertion Loss@23ºC&Input Power1 W	dB	2.5	4.5
Max.Insertion Loss@23°ºC&Input Power 2 W	dB	3.0	5.5
Min. Extinction Ratio@23ºC(PM Fiber Type)	dB	20
Max. Polarization Dependent Loss@23ºC(Single Mode Fiber Type)	dB	0.15
Min. Return Loss(Input /Onput )	dB	45
Max. Average Power	W	0.5, 1,2
Max.ns pulse peak power	kW	10
Package Dimensions	mm	33x17x11 .5	60x17x11 .5
Max.Tensile Load	N	5
Operating temperature	ºC	+10 - +50
Storage temperature	ºC	0 - +60

Note: When utilizing connectors, handling power is restricted to 1W. Insertion loss will increase by 0.3dB, return loss will decrease by 5dB, and the extinction ratio will diminish by 2dB. The connector key is aligned with the slow axis.
Package Dimensions

Single

Dual
