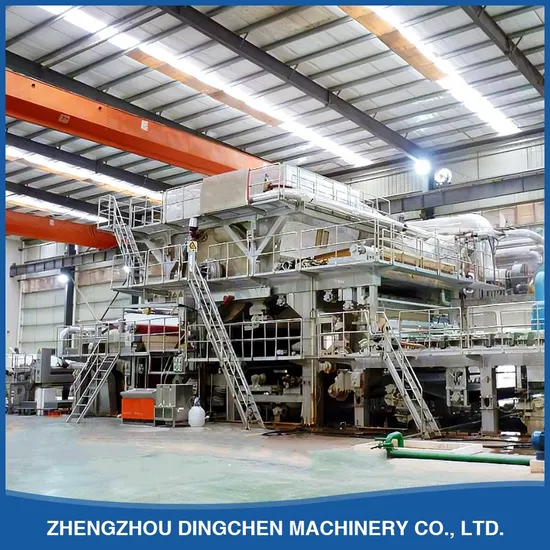

Complete Set Waste Paper Virgin Pulp Toilet Paper Production Machine

Product Description

1880mm toilet paper production line for capacity 5t/d
I.Technical parameter

1. Raw material	recycled paper
2. Output paper	toilet paper
3. Output paper weight	15-30g/m2
4. Capacity	5 tons per day
5. Cylinder mold width	2300mm
6. Paper width	1800mm
7. Working speed	60-120m/min
8. Designing speed	150m/min
9. Rail gauge	2800mm
10. Drive way	Alternating current frequency converter speed control, sectional drive.

II. The main structure with spec

1 . Cylinder mold part
1 set of φ1500mm×2300mm×2800mm stainless steel cylinder mold, 1 set of 450mm×2300mm×2800mm couch roll, coated by rubber, rubber shore hardness 38ºC±2.
Dryer part
1 set of 2500mm×2300mm×2800mm alloy dryer drum, 1 set of 500mm×2300mm× 2800mm touch roll, rubber shore hardness 90ºC±2. Pneumatic pressure device. There is double-layer dryer hood.

Winding part
1 set of 1000mm×2300mm×2800mm winding cylinder.

Rewinding and cutting part
1 set of 1880mm rewinding machine with embossing and perforating.
1 set of tissue paper cutting machine. Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressurescreen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier papermachine, head box, cylinder mould, dryer cylinder, roller etc.)C.Paper making finished devices (Paper calender, pope reel,size press,paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage1.Experienced producing team2.Advanced technological strengthProduct Advantage1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation
