Zoomlion Diesel Electric 14m-30m Articulated Boom Aerial Work Platform Za14j Za22j Za26j

Product Description

Company Profile
Oriemac is a leading Chinese construction machinery exporter, located in downtown Shanghai City.
With a balanced and diversified approach towards the ever-changing market scenario in perfectcombination with strategic management and organic growth, Oriemac has emerged as a renowned exporter of a wide range of top Chinese Construction Machinery. Bringing you the best construction machinery manufactured by reputed manufacturers in China, we assure you of immaculate quality and excellence.
With a rich experience of many years, we have acquired the requisite expertise and excellence in our domain. Having scaled phenomenal heights of success, today we stand tall amidst a number of competitors across the world. A well-coordinated and expertly managed operation system and professional international sales team enable us to turn orders into final products and export them to approximately 60 countries and several regions across the globe.

Oriemac brings you a wide range of construction machinery series, as follows:

- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and Truck-mounted Crane
- Earthmoving Machinery, such as Wheel Loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
- Road Construction Machinery, such as Road Roller, Motor Grader, Asphalt Concrete Paver, Cold Milling Machine, and Soil Stabilizer
- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump, and Concrete Mixer
- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig
- Logistics Machinery, such as Telescopic Handler, and Forklift
- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Platform, and Fire Truck
Product Parameters

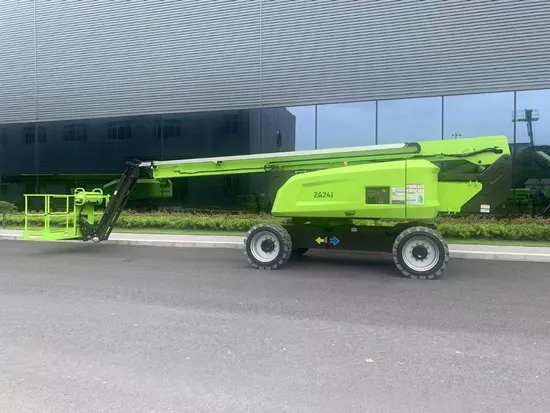

Zoomlion Diesel and Electric 14m 18m 20m Articulated Boom Aerial Work Platform ZA14J ZA22J ZA26J
Zoomlion telescopic boom lifts are engineered to enhance working efficiency and offer greater horizontal outreach than any other type of aerial work platform. These units feature stable extension and great gradeability in rough terrain, offering a dual lift capacity of 300 kg unrestricted and 454 kg restricted. It is ideal for outdoor construction and industrial applications.
ZA14J features modularized design, light weight, commonalization and intelligence and provides a large lift capacity and high reliability. Four-wheel drive and oscillating axle system greatly improves off-road performance. With a gradeability of 45%, these machines are perfect for work in construction and industrial applications with limited access. Lubrication-free boom system minimizes equipment holding costs. Swing-out engine tray makes regular maintenance more convenient. Remote Monitoring and Rental Management System realizes on-board diagnosis, POST (power on self test), and maintenance alert for efficient fleet management.

Main Specs of Telescopic Boom Lifts
Comply with CE/ANSI/GB Standard
Model	ZT34J	ZT26J	ZT20J
Size
Work Height	36m	28.20m	22.75m
Platform Height	34m	26.20m	20.75m
Horizontal Outreach	23.50m	22.71m	16.80m
A - Stowed Length	13.50m	12.5m	10.36m
B - Stowed Width	2.49m	2.49m	2.49m
C - Stowed Height	3m	2.80m	2.78m
D - Platform Length	2.44m	2.44m	2.44m
E - Platform Width	0.91m	0.91m	0.91m
F - Wheelbase	3.80m	3.05m	2.52m
Wheelbase	2.05/3.41m	2.11m	2.13m
G - Ground Clearance	0.41m	0.40m	0.42m
Performance
Platform Capacity (Unrestricted/Restricted)	300/454kg	300kg/454kg	300kg/454kg
Drive Speed (Working)	5.5km/h	5.5km/h	6.0km/h
Gradeability	45%(24°)	45% (24°)	45% (24°)
Turning Radius (Inside)	2.80m	3.66m	2.4m
Turning Radius (Outside)	5.70m	6.86m	5.4m
Turntable Swing	360°continuous	360°continuous	360°continuous
Platform Rotation	±90°	±90°	±90°
Tail Swing	1.88m	1.60m	1.45m
Jib (Range of Articulation)	130°(_55°~75°)	130°(_55°~75°)	135°(_60°~75°)
Max. Working Slope	3°	3°	3°
Max. Wind Speed	12.5m/s	12.5m/s	12.5m/s
Power
Engine	Kohler KDI2504TCR	Deutz TD2.9 L4/ QSF2.8	Deutz D447 L4/ 404D-22T
Fuel Tank Capacity	200L	150L	130L
Control Voltage	12V DC	12V DC	12V DC
Hydraulic Tank Capacity	250L	150L	150L
Drive Mode	4WD	4WD	4WD
Steering Mode	Front wheel/Rear wheel/Crab	Front wheel	Front wheel
Tire
Type	IN445/50D710 Foam-filled Tires	15-625 Foam-filled Tires	355/55D-625 Foam-filled Tires
Weight
Gross	19200kg	18900kg	12200kg
