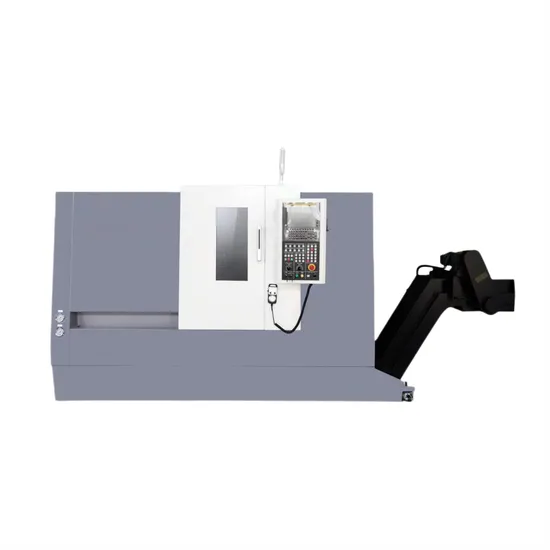

Tk1000 High Accuracy Slant Bed CNC Lathe Machine
Basic Info.
Model NO.
TK1000
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
Slant Bed CNC Lathe
CNC or Not
CNC
Swing Over Bed
560mm
Max.Processing Length
1000mm
Standard Turning Dia.
280mm
Max. Turning Dia.
400mm
Swing Over Cross Slide
350mm
Spindle Nose
A2-6/A2/8
Spindle Bore Dia.
65/80mm
Max. Bar Capacity
50/66mm
Spindle Speed
50-4500/4000rpm
Spindle Output Max. Torque
235n.M
Chuck Size
8 Inches
Machine Weight
4800kg
X/Z Axis Rapid Traverse
30m/Min
Transport Package
Wooden Cases
Specification
3570*1860*1850mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
387.00cm * 216.00cm * 215.00cm
Package Gross Weight
5280.000kg
Product Description
Product PictureSpecification Parameter
| Items | Specification | Unit | TK350 | TK500 | TK1000 |
| Processing capacity | Swing over bed | mm | Φ420 | Φ560 | Φ560 |
| Max.processing length | mm | 350 | 500 | 1000 | |
| Standard turning dia. | mm | 280 | 280 | 280 | |
| Max. turning dia. | mm | 300 | 400 | 400 | |
| Swing over cross slide | mm | 285 | 350 | 350 | |
| Spindle | Spindle nose | / | A2-6 | A2-6/A2-8 | A2-6/A2-8 |
| Spindle bore dia. | mm | 65 | 65/80 | 65/80 | |
| Max. bar capacity | mm | 50 | 50/66 | 50/66 | |
| Spindle speed | rpm | 50-4500 | 50-4500/4000 | 50-4500/4000 | |
| Spindle motor (continuous/15min. | kw | 7.5/11 | 11/15 | 11/15 | |
| Spindle output max. Torque | N.m | 117 | 235 | 235 | |
| Chuck size | Inch | 8 | 8 | 8 | |
| Axis feed | X/Z axis rapid traverse | m/min | 30 | 30 | 30 |
| X/Zaxis travel | mm | 175/410 | 210/560 | 210/1050 | |
| X/Z axis motor power | kw | 1.8 | 1.8 | 1.8 | |
| Tailstock | Tailstock body travel | mm | (300) | 450 | 900 |
| Tailstock hole taper | (MT4#) | MT5# | MT5# | ||
| Tailstock center structure | (Live center) | Live center | Live center | ||
| Turret | Turret type | Servo 8 station turret | Servo 8 station turret | Servo 8 station turret | |
| Tool size | mm | 25*25/Φ40 | 25*25/Φ40 | 25*25/Φ40 | |
| Precision | Processing precision | IT6 | IT6 | IT6 | |
| X/Z axis positioning accuracy | mm | 0.008 | 0.008 | 0.008 | |
| X/Z axis repeatability | mm | 0.004 | 0.004 | 0.004 | |
| Others | Machine weight | kg | 3300 | 4000 | 4800 |
| Machine dimension | mm | 1980*1585*1750 | 2750*1860*1850 | 3570*1860*1850 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
