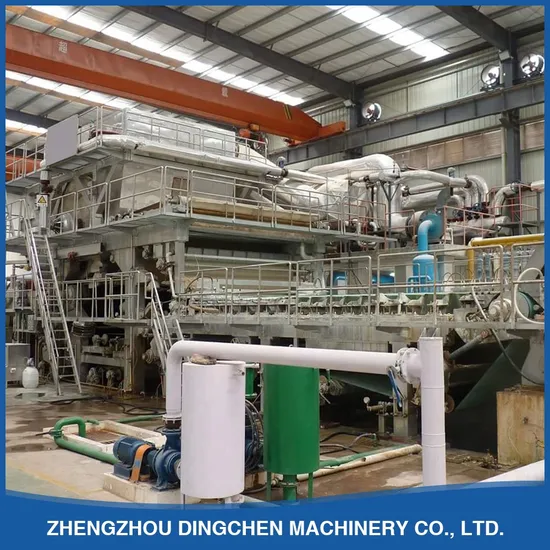

2100mm Long Wire Toilet Paper Making Machine with 8-10tpd

Product Description

2100mm Fourdrinier Type Tissue Paper Making Solution for Capacity 8-10 Tons/Day

I.Technical parameter

1. Output paper	high quality tissue paper
2. Raw material	virgin pulp
3. Output paper weight	13-15g/m2
4. Net paper width	2100mm
5. Capacity	8 -10 tons per day
6. Working speed	200-220 m/min
7. Designing working speed	250 m/min
8. Fourdrinier wire width	2350mm
9. Rail gauge	2900mm
10. Drive way	A/C inverter speed control, sectional drive.

II. Main structure with spec

Fourdrinier wire part
The length of fourdrinier table is 8 meters, the frame is profile steel, coated with stainless steel. The dewatering segment is made of ceramic. Closed type head box is made of stainless steel, with stainless steel single evener roll.

Dryer part1 pc of Ф3000mm×2350mm×2900mm alloy dryer cylinder, 1 pc of Ф600mm×2350mm×2900mm touch roll, coated rubber shore hardness 96ºC±2. With pneumatic pressure device. With 2 sets of pneumatic doctor blades.
Winding part1 set of Ф1100mm×2350mm×2900mm cool winding cylinder.

Rewinding and cutting part1 set of 2100mm automatic rewinding perforating & embossing machine.
1 set of paper cutting machine.
Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.
have won customers' consistent affirmations.
We have a large scale of products regarding paper machinery, including:
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
Meet customers' requirements and exceed customers' expects.
We wish to found long-termcooperation with your company
Technical Advantage
1.Experienced producing team
2.Advanced technological strength
Product Advantage
1.Through the international authentication
2.The same material the most preferential price
3.A lot of varieties for the customer to choose
Service Advantage
1.Technical consultation
2.Project evaluation
3.Detailed design of factory
4.Installing and testing the whole production line
5.Training engineers and workers
6.Supplying spare parts for long time
The business process
1.send your requirements:raw material,capacity,paper grammage
2.we make the solution to you
3.come visit and negotiate
4.sign contract
5.first payment
6.production
7.pay spare money
8.delivery
9.installation ,training,test run
10.production consultlation Packaging & Shipping Our Services FAQ
