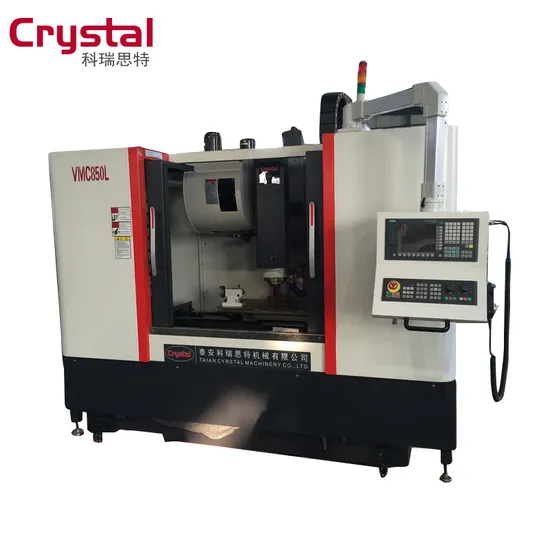

Vmc850 Low Cost CNC Milling Machine Fanuc Control
Basic Info.
Model NO.
VMC850
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Name
CNC Milling Machine
Workbench Specification
1050*500mm
Workbench Maximum Load
600kg
X/Y/Z Axis Coordinate Schedule
800×500×550
Largest Feed Speed
10000 mm/Min
X/Y/Z Largest Fast Moving Speed
20/20/15 M/Min
Spindle Maximum Speed
8000rpm
The Spindle Taper Hole
Bt40
Spindle Motor
11 Kw
X/Y/Z Axis Servo Motor
2.0/2.0/2.0
The Workbench T Slot
18×90 mm
Positioning Accuracy
0.005
Capacity of Tool Storage
16
Maximum Tool Weight
8kg
Electric Capacity
11 kVA
Transport Package
Wooden Package
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
50set/ Mon
Product Description
VMC850 Low Cost Hobby CNC Milling Machine Fanuc ControlStandard Specification
l KND1000M system
l Taiwan spindle
l Spindle speed is 8000 rpm
l Taiwan BT40 spindle unit
l Taiwan ball screw and locking nut
Main specification
| Items | Specifications |
| Pallet size | 1050 x 500 mm |
| X-axis travel | 800 mm |
| Y-axis travel | 500 mm |
| Z-axis travel | 550 mm |
| Distance from spindle center to Column guide | 550 mm |
| Distance from spindle nose to table | 105-655 mm |
| T-type tank | 5-18 x90 |
| Type of taper hole | BT40 |
| Max spindle speed | 8000 rpm |
| Spindle power | 7.5 kw |
| Three-axis torque | 12/12/12 NM |
| Three-axis motor coupling | Direct |
| Three-axis rail-way | Slide |
| Max. Weight on pallet | 600 kg |
| Magazine capacity | 16 |
| Max. Tool weight | 8 kg |
| Max. Tool length | 350mm |
| Max. Tool diameter | 100mm(adjacent knife)/ 150mm(nonadjacent knife) |
| Rapid traverse rate | 24/24/20m/min |
| Cutting feed speed | 10 m/min |
| Positioning precision | ±0.008/ ±0.006/ ±0.006mm |
| Repeatability | ±0.004/ ±0.004/ ±0.004mm |
| L x W x H | 2700x 2250 x 2700mm |
| Weight | 5500kg |
| CNC system | KND 1000M |
