Product Description

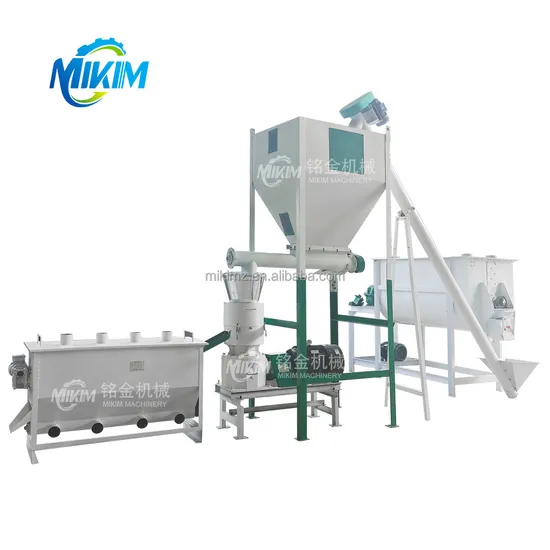

200-3000kg/H Flat Die Animal Poultry Feed Manufacturing Poultry Cattle Feed Pellet Making Machine production plant
Product Description
This poultry feed pellet machine is the main feed machinery product produced by our factory at present. Is my factory technical personnel at home and abroad advanced flat model based on particle machine, accumulated many years of production experience and research, improvement, carefully manufacturing feed machinery,usegear transmission from the traditional do belt drive slippage, belt wear too fast, and designed with different models, a variety of models, are farmers, feed processing ideal processing machinery.
Feed Pellet Machine Features : 1. Our pellet die have many diameters, and different diameters suit different animals2. 2mm is suitable for aquaculture animals, such as shrimp, small fish, crabs, young birds3. 3mm is suitable for aquaculture, young chickens, young ducks, young rabbits, young peacocks, aquatic products,4. 4mm millstone is suitable for breeding, chickens, ducks, fish, rabbits, pigeons, peacock birds, etc. 5. 5mm millstone is suitable for breeding pigs, horses, cattle, sheep, dogs and other domestic animals

Model	Capacity	Power	Dimension	Weight
BH-125	80-100kg/h	3kw	110*35*70 cm	95 kg
BH-150	120-150kg/h	4kw	115*35*80cm	100 kg
BH-210	200-300kg/h	7.5kw	115*45*95cm	300 kg
BH-260	500-600kg/h	15kw	138*46*100cm	350 kg
BH-300	700-800kg/h	22kw	130*53*105cm	600 kg
BH-360	900-1000kg/h	22kw	160*67*150cm	800 kg
BH-400	1200-1500kg/h	30kw	160*68*145cm	1200 kg

We can offering different production line in group,
If you looking for your own plant to produce feed pellets,just tell us your requirment ,we give you propose Related Products
How to choose die when you buy our pellet machine? A.Generally speaking, to feed loach, scorpion, bird, chicken, fish, die with 3mm is suggested. To feed duck, goose, big fish, laying hen, die with 4mm is suggested. to breed pig, cow, sheep, horse, etc die with 5mm hole is suggested. B. Feed pellets surface made from this pellet machine has smooth surface, uniform and moderate in hardness. If you want different pellets with different size, then pellet machine are should installed with different die holes. The pore size is divided intoф2.5. ф3,ф3.5, ф4, ф5, ф6, ф 8, ф9, ф10, etc. When ordering, users can choose according to the needs of different growing seasons of farmed animals. The feed has a low temperature rise during processing and can better maintain various nutrients in the raw materials.
C. During the production process, under the pressure of the machine itself, the starch in the feed can be matured to a certain degree, and a rich aroma is produced, and the texture of the feed is hard, which is consistent with the characteristics of the pig, cow and sheep. The palatability of the feed is easy to eat.
D, through the crushing can kill the common pathogenic microorganisms, parasites. As the feed is dried and dried, the water content is very low, which is more convenient for storage. The use of granular feed saves time and effort, prevents the occurrence of some diseases, improves the utilization rate of feed, and thus obtains higher economic benefits.
Rind die poultry Feed Pellet Machine Euipped with conditioner, this pellet machine will steam and soft the material first to kill the bacteria and improve the qualitiy and capacity of final feed pellets.It has the better raw material versatility, which can be suitable for pelletizing many kinds of raw material, such as corn, broom corn, wheat, beans, oil seed meal and other materials .

Model	Main Power	Feeder Power	Conditioner Power	Dia.of Ring	Pellet Size	Capacity
SZLH250	22KW	0.55KW	1.5KW	250mm	φ1.0-12.0mm	1-2T/H
SZLH320	37KW	1.5KW	2.2KW	320m	φ1.0-12.0mm	3-5T/H
SZLH350	55KW	1.5KW	3.0KW	350mm	φ1.0-12.0mm	5-8T/H
SZLH420	110KW	2.2KW	7.5KW	420mm	φ1.0-12.0mm	8-12T/H
SZLH508	132/160KW	2.2KW	11KW	520mm	φ1.0-12.0mm	12-18T/H

Finished Pellets
1.Used for making animal feed pellets 2.Used for making wood pellets as fuel
3.Raw material size need 3-5mm ; Humidity :10-12%
Company Profile

FAQ
Question 1 : Is the pellet machine dry in and out?Answer: What we usually call dry-in and dry-out means that the raw materials can be processed directly. This is amisunderstanding. It is not a real dry-in and dry-out, because the raw materials used contain a certain percentage of moisture, as long as the overall humidity is 10 Between %-15%, there is no need to add water, and it can be done directly. If the raw materials are very dry, you can spray a little water, a small amount, about 3%-5%, so that it can be formed well and will not affect storage.Question 2 : Does the pellet machine have any requirements for raw materials?Answer: Grain materials do not need to be crushed, but forage and straw must be crushed before they can be processed. It is best to use powder materials because the particles made from powder materials are evenly nutritious.Question 3 : Can we not use your motors and equip them locally?Answer: Of course, it is convenient for maintenance in the future, and can save freight! But our price is not the price of themotor! Our motors are 100% national standard copper core from regular manufacturers, the price is more expensive, and the quality Completely rest assured!
