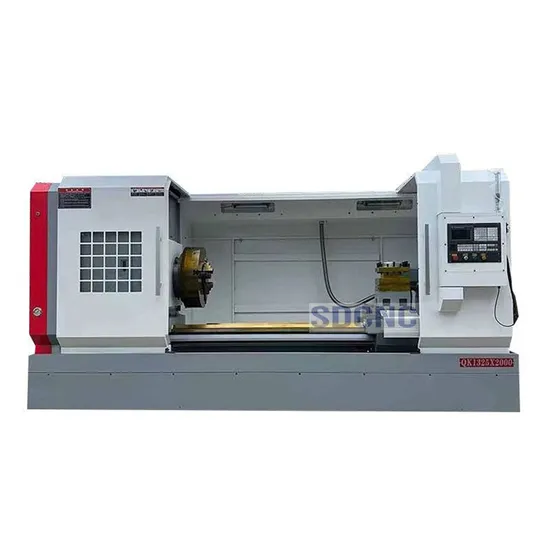

Sdcnc High Quality Heavy Duty Heavy Duty Threading CNC Lathe Machine Tools
| US$43,000.00-46,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QK1325
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Certification
GS, CE, ISO 9001
Condition
New
Main Motor Power
11kw
Machining Size Range
1500mm
Tailstock Quill Travel
250mm
Tailstock Quill Taper
Mt5
Transport Package
Wood Packaging
Specification
3700x1755x1800
Trademark
SDCNC
Origin
Shandong China
Packaging & Delivery
Package Size
370.00cm * 176.00cm * 180.00cm
Package Gross Weight
5200.000kg
Product Description
Product DescriptionThis series CNC pipe threading lathe is mainly designed for processing internal and external pipe
threads, including metric,inch and taper threads. As well as having all the common functions of normal
CNC lathe, such as processing inner and outer cylindrical surface, conical surface, spherical surface,
curved surface, groove, end face, etc. This series lathe is widely used in industries including petroleum
exploiting, minerals mining, chemical piping and geological prospecting, it is high-efficiency equipment
in processing and repairing drilling pipe, drilling rod, thread coup-ling and son on.
SPECIFICATIONS
| Item | Unit | QK1325x1500 |
| Max dia. swing over bed | mm | 670 |
| Max dia. swing over cross slide | mm | 370 |
| Max length of workpiece | mm | 1500 |
| Width of bed | mm | 550/600 |
| Spindle bore | mm | 255 |
| Power of spindle motor | Kw | 11 |
| Mode of spindle speed | Two gears Smooth adjustment | |
| Range of spindle speed | r/min | (L): 25-120 (H): 100-500 |
| X/Z axis travel | mm | X:350 / Z:1250 |
| X/Z axis rapid traverse | mm/min | 4000 |
| X axis motor speed | r/min | 1500 |
| X axis motor torque | N.m | 10 |
| X axis motor power | Kw | 1.5 |
| Z axis motor speed | r/min | 1500 |
| Z axis motor torque | N.m | 15 |
| Z axis motor power | Kw | 2.3 |
| Tailstock quill diameter | mm | 100 |
| Tailstock quill travel | mm | 250 |
| Tailstock quill taper | MT5 | |
| Turret model | HAK-21240 | |
| Tool post type | Vertical 4- station | |
| Turret dimension | mm | 240x240 |
| Turret indexing time | s | 2.6 |
| Chuck | K11-630 Three jaw chuck | |
| Positioning accuracy | mm | 0.02 |
| Repositioning accuracy | mm | 0.01 |
| Machine size | mm | 3700x1755x1800 |
| Machine weight | Kg | 5200 |
