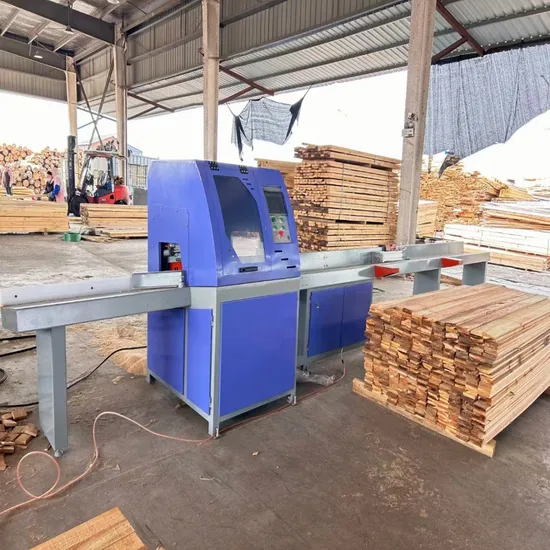

CNC Optimizer Cross Cut off Saw Woodworking Machine
| US$5,500.00-5,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
450
Power Type
Electric
Layout
Vertical
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
Precision
Certification
ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
12 Month
Model
450
Saw Blade Diameter
450mm
Cutting Height
10-120mm
Cutting Width
30-200mm
Feeding Table
4 Meters (6 Meters Option)
Max Cutting Section
120*150mm or 100*200mm
Transport Package
Customized
Specification
Customized
Trademark
Customized
Origin
China
HS Code
8465910000
Production Capacity
200 Sets Per Year
Packaging & Delivery
Package Size
700.00cm * 120.00cm * 150.00cm
Package Gross Weight
1100.000kg
Product Description
Product ParametersAutomatic Precision Cross Cut Saw
| Model | 450 | 600 |
| Saw Blade diameter | 450mm*30mm | 600mm*30mm |
| Feeding table length | 4m(6 Meters Option) | 4m/ (6metes Option) |
| Discharge table length | 1200mm | 1200mm |
| Cutting height | 10-120mm | 10-140mm |
| Cutting width | 30- 200mm | 30- 300mm |
| Cutting section Thickness*width | Max. 120*150mm 100*200mm | Max.120*300mm 140*280mm |
| Feeding speed | 5-30m/min | 5-30m/min |
| Cutting speed | 40pcs/min | 45pcs/min |
| Cutter spindle rotation speed | 3000rpm | 3000rpm |
| Servo drive motor power | 0.75kw | 1kw |
| Cutting motor power | 7.5kw/11HP | 11kw/15HP |
| Total power | 8.5kw | 12.5kw |
| Pressing method | Cylinder, 0.5-0.7Mpa | Cylinder, 0.5-0.7Mpa |
| Cutting tolerance | In +/-1mm | In +/-1mm |
| Dust collection port | 100mm*2pc | 100mm*2pc |
| Voltage | 380v 50Hz 3 phase | 380v 50Hz 3 phase |
Related Machines
Cross Cut Saw
| Max Sawing Length | 1500MM |
| Max Sawing Thickness | 50MM |
| Motor Power | 3KW |
Pneumatic Wood Cross Cut Sawmill
| Model | 200 | 250 | 320 |
| Max Sawing Wood Diameter | 200MM | 250MM | 320MM |
| Sawing Wood Length | Unlimited | ||
| Motor Power | 5.5KW | 5.5KW | 7.5KW |
| Blade Diameter | 500MM | 600MM | 800MM |
| Wood Grasp | Pneumatic | ||
| Weight | 500KG | 600KG | 700KG |
Pneumatic Cut Off Saw
| Model | 274 | 276 |
| Max Cutting Width*Thickness | 150*110MM/300*40MM | 200*200MM/650*50MM |
| Saw Blade Diameter | 450MM | 620 |
| Motor Power | 5.5KW | 7.5KW |
| Weight | 300KG | 550KG |
| Overall Dimension | 2900*930*1100MM | 4250*1150*1300MM |
Multiple Heads Chain FeedingTrimmer Saw
| Model | 1500-2 | 3000-3 | 5000-4 |
| Cutting Thickness | 100MM | 100MM | 100MM |
| Cutting Width | 300MM | 300MM | 300MM |
| Cutting Length | 500-1500 | 500-3000 | 500-5000 |
| Saw Quantity | 2 | 3 | 4 |
| Motor Power | 3KW*2 | 3KW*3 | 3KW*4 |
| Weight | 350KG | 480KG | 700KG |
Multiple Heads Trimmer Heavy Duty Chain Feeding Trim Saw Machine
| Model | 1500-2 | 4000-3 | 5000-4 | 6000-5 | 7000-6 |
| Cutting Length | 400-1500MM | 600-4000MM | 600-5000MM | 600-6000MM | 600-7000MM |
| Cutting Thickness | 10-120MM | 10-120MM | 10-120MM | 10-120MM | 10-120MM |
| Cutting Width | 10-400MM | 10-400MM | 10-400MM | 10-400MM | 10-400MM |
| Circular Saw Blade | 450MM*2 | 450MM*3 | 450MM*4 | 450MM*5 | 450MM*6 |
| Motor Power | 7.5KW*2 ,0.75kw*2 | 7.5KW*3,0.75KW*2 | 7.5KW*4,0.75KW*2 | 7.5KW*5,0.75KW*2 | 7.5KW*6,0.75KW*2 |
| Weight | 1500KG | 2000KG | 2500KG | 3000KG | 3500KG |
Company Profile
Specialize in research & development, production, sales of sawmills and the relevant fittings SINCE 1988
We have serves 11,000 enterprises and our products have been exported to over 60 countries in the world.
Our wood Circular Sawmill including:
Multi Ripsaw (Double Arbor/Single Arbor,Log/Boards Cutting)
Trimmer (2/3/4/5 Heads)
Circular Sawmill With Wood Carriage (1/2/4 Blades)
Twin Blades Edger
Double Blades Angle Sawmill
Swing Blade Sawmill
Industrial Table Sawmill
Cross Cutting Sawmill(CNC,High Speed,Optimizing)
Sawmill & Kilns & Pallet & Biomass & Forestry & Recycling
Sincerely welcome worldwide distributors to join us!
