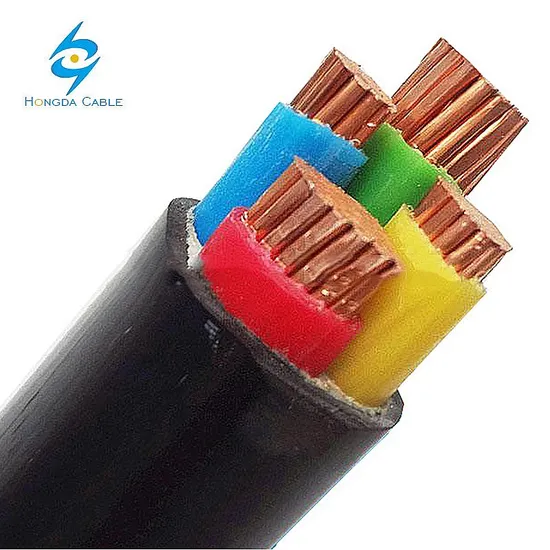

Low Voltage 0.6/1kv 3 Phase 4 Wire XLPE PVC 4 Core 95mm Underground Copper Power Cable

Product Description

Product Description 4 Core 95mm Copper Cable Brief Introduction :
4 Core 95mm Copper Cable is Cu conductor XLPE insulated PVC sheath Electric power cable for laying buildings,inducts , kin tunnels,direct in ground and under water,.For laying indoors , in tunnels, in ducts. Able to bear extermal mechanical force but not large pulling forces. Single core cables are impermissible to be laid in magnetic ducts.
4 Core 95mm Copper Cable Operating characteristics:
Rated power-frequency voltage u0/u:0.6/1 KV
Max permissible continuous operating temperature of conductor 90
Max short-circuit temperature of the conductor shall not exceed (Max 5 seconds duration): cross-section of conductor 300 mm2
The anbient temperature under installations should not be below 0
The bending radius of single core cable should not be less than 20 times of the cable diameter ,the bending radius of multi-core cable should not be less than 15 times of the cable diameter
4 Core 95mm Copper Cable Parameter

0.6/1kV-4 core copper conductor XLPE insulated PVC sheathed power cable
No. of cores and nominal cross section	Thickness of Insulation	Thickness of Sheath	Approx. overall Diameter	Approx. weight	Max. DC resistance of conductor(20ºC)	Current carrying capacity
(mm2)	(mm)	(mm)	(mm)	(kg/km)	(Ω/km)	In Air(A)	In Ground(A)
4X1.5	0.7	1.8	12.6	160	12.1	21	30
4X2.5	0.7	1.8	13.6	210	7.41	28	39
4X4	0.7	1.8	14.8	280	4.61	37	51
4X6	0.7	1.8	16.0	380	3.08	47	64
4X10	0.7	1.8	18.6	530	1.83	65	86
4X16	0.7	1.8	21.0	800	1.15	84	110
4X25	0.9	1.8	24.9	1240	0.727	110	140
4X35	0.9	1.8	28.3	1600	0.524	135	170
4X50	1.0	1.8	28.4	2000	0.387	170	205
4X70	1.1	2.0	33.1	2800	0.268	215	250
4X95	1.1	2.1	37.1	4000	0.193	265	300
4X120	1.2	2.2	40.8	5000	0.153	310	345
4X150	1.4	2.4	45.2	6100	0.124	350	385
4X185	1.6	2.6	52.1	7600	0.0991	405	435
4X240	1.7	2.8	57.8	9500	0.0754	480	500
4X300	1.8	3.0	63.5	12000	0.0601	555	565
4X400	2.0	3.3	70.9	16000	0.0470	640	640

Company Profile Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi . our factory established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100,000 square meters, including 50,000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third .our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
Our factory has advanced equipment of 20 sets production lines and 25 sets testing machinas, The production capacity is more than 12 million kilometers. We have skillful staff over 20-year experience,before starting working, every worker need to be trained professionally. Therefore, we can promise the product will be 100% quantified.

In our factory, every roll wire need to be test strictly, We wil test resistance, insulation thickness, the tension, stretch and so on. Before packing, every cable need to be test quantified, and we can make promise the 100% quantified.
Packaging & Shipping Packing
Steel wooden drum (fumigation)
Cable length in each drum: 1000m/2000m or as per actual cable length requirements.
Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Shipping Port:
Tianjin, Qingdao, or other ports as per your requirements.
Sea freight:
FOB/C&F/CIF quotation are all available.

*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get from local shipping agency
Any problem and inquiry pls contact with Tina
