Small Advertising CNC Router CNC Engraving Machine 6090
| US$1,300.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZK
Spindle Layout
Vertical
Spindle Number
Single-Spindle
Feed Mode
Manual
Controlling Mode
CNC
Certification
CE, ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
1 Year
Model
6090
Spindle
Water Cooling Spindle
Guide Rails
Hiwin Liner Square Guide Rails
Ball Screw
Tbi Ball Screw
Inverter
Best Brand Inverter
Control System
DSP Control System
Motor
Stepper Motor
Driving Way
Stepper
Transmission in X,Y
Ball Screw
Table Surface
Aluminum with PVC
Transport Package
Exporting Plywood Package
Specification
600*900*200mm
Trademark
zhongke
Origin
Jinan Shandong China
HS Code
84659900
Production Capacity
100set /Month
Product Description

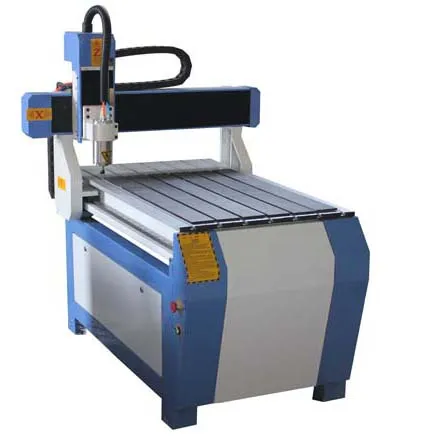

Small Advertising CNC Router CNC Engraving Machine 6090Our machine pictureConfiguration:
1.Water cooling spindle with high speed,high efficency and little noise.
2.All of the spindles can work together to save you time and costs.
3.The lathe is founded by welded steel that ensures the high stability and longtime use.
4.Taiwan HIWIN square guide rails and Taiwan TBI ball screws with high precision,large load bearing and stable running.
5.High speed driver and Stepper enhance work efficiency.
6.Our controller is Ncstudio,easy to operate(optional:DSP control system).
7.Equipped with professional Aluminum with PVC base with the high strength engineering plastics surface in order to ensure can bear large load and longtime working.
Configuration:
Technical parameters:
| Model | ZK6090 |
| X,Y,Z axis working area | 600*900*200mm |
| Whole structure | Iron casting bed structure |
| Table surface | Aluminum with PVC |
| X,Y,Z structure | Taiwan PMI/HIWIN Square linear guide rail |
| X,Y structure | Rack and pinion transmission, high speed and more stable; Y -double motor drive |
| Z structure | Imported ball screw, high precision |
| Max. idling speed | 50m/min |
| Max. working speed | 25m/min |
| Repositioning Accuracy | ±0.05mm |
| X Y Z working Accuracy | < 0.02mm |
| Spindle | Water cooling spindle |
| Spindle rotating speed | 6000-18000rpm/min |
| Diameter of tools | Φ3.175 -Φ20 |
| Collect size | ER 25 |
| Operation language | G code (plt, mmg, uoo, bmp) |
| Driving system | Stepper motor |
| Operating system | DSP control system(can be optional NK105) |
| Working voltage | 220V/380V |
| Software | UcancamV8 / Type3 / Artcam software (option) |
After sale service:
1 we offer 1 year warranty
2 we offer 24 hourses technical support online
3 Druring the warranty, if there is part broken, we will offer you the same for free.
