3/5/7 Layers Automatic Corrugated Paper Plant Production Line Package Machine

Product Description

3/5/7 Layers Automatic Corrugated Paper Plant Production Line Package Machine

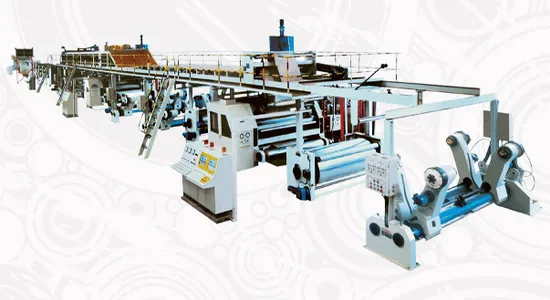

5 PlyCorrugated Cardboard Production Line
ZJ-V5B hydraulic shaftless mill roll stand
structural feature:
★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
★brake adjustable adopts multipoint braking system.
★every stand matched two sets paper car, and they can paper on the both sides at the same time.
technical parameters:
1,the range of clamping paper:MAX1800mm MIN1000mm
2,clamping diameters:MAX¢1500mm MIN¢350mm
3,main shaft diameter of paper holder:¢240mm
4,gas source work pressure(Mpa):0.4---0.8Mpa
5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6
6,single weight:MAX4000Kg
Hydraulic system parameters: Work pressure(Mpa):16---18Mpa 2,lifting hydraulic cylinder:¢100×440mm Clamping hydraulic cylinder:¢63×1300m 4,hydraulic station motor power:3KW --440V -- 50Hz 5,solenoid valve voltage:220V 50 Hz
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
Main shaft	Day steel production	diameter242mm
Swing arm	Production by own	Resin sand gray ironHT200
wallboard	Jigang prduction	Q235AWelding parts
bearing	HRB,ZWZ,LYC
expand chuck	Zhejiang xusheng	3,4inch shared
Main electrical appliance	Siemens
button	CHINT NP2series
Air switch	Siemens
Pneumatic components	Zhejiang Sonor CSM
Hydraulic station	Shandong zaozhuang
Brake pump	zhejiang

RG-1-800 top(core)paper preheat cylinder
RG-3-800 triple preheater
structural features:
★preheat roller accord the pressure container national standards,and enclose the pressure container certificates and inspection certificate.
★Each roller surface after grinding precision grinding and dealing with hard chrome plating, Surface friction is small, durable.
★electric adjustment angle, and angle can rotation adjustment the preheat area in the range of 360°.
technical parameters: Effective width:1800mm 2,diameter of preheat roller:¢800mm
angle adjustment range:360°rotation angle shaft diameter:¢110mm×2
3.steam temperature:150-180ºC steam pressure:0.8-1.3Mpa
4,working power:440V 50Hz 5,Motor power:250W short(S2)working system
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
Steam rotation joint	Quanzhou yujie
preheater	Hangang or jigang	Q235Bpressure container board
bearing	HRB,ZWZ,LYC
Seat belt bearing	Zhejiang wuhuan
Reducer	Shandong dezhou
contacts	Siemens
Angle axis		GB seamless steel pipe¢110
traps	beijing	Inverted bucket

SF-360EA Square board single facer
structural features:
★main flute roller:¢360mm(according flute differ),pressure roller¢380mm,preheat roller¢400mm.
★using negative pressure type design, low heat loss,helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, pressure uniform, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
★corrugated roll adopt 48CrMo high quality alloy steel, dealing with heating, after grinding hard chrome plating surface treatment.
★corrugated roll and pressure roll adopt the airbag control system with high stability, at the same time with pneumatic control buffer effect.
★Glue volume control with electric adjustment,rubber septum electric device,the glue system can operate independently when the motor stops,prevent glue exhausted.
★easy operation control system, touch screen operation interface,Drawing with color display operating status, function selection, fault indication, and parameter settings, etc. can exclude exhibit this machine fully functional, easy to operate, user-friendly.
★built-in pre-conditioner with proportional spraying device, adjustment the core paper temperature and moisture.
★main, vice corrugating and pressure roller bearings are used in high-temperature grease to ensure bearing life running smoothly.

technical parameters:
1,effective width:1800mm
2,operation direction:left or right(Determined in accordance with the customer's facility)
3,design speed:180m/min 4,temperature range:160-200ºC
5,air source:0.4-0.9Mpa 6,steam pressure:0.8-1.3Mpa
7,corrugated flute:(UV type or UVV type)
roller diameter parameters:
1,diameter of up corrugated roller: ¢360mm 2,diameter of pressure roller:¢380m
3,diameter of glue roller:¢269mm 4,diameter doctor roller :¢153mm
5,diameter of preheater:¢400mm
powered motor parameters:
1.main frequency drive motor:30KW rated voltage:440V 50Hz Continuous (S1) working standard
2,suction motor:15KW rated voltage:440V 50Hz Continuous (S1) working standard
3,glue reducer linear actuator:30W rated voltage:24V short(S2) working standard
4,glue gap motor:200W*2 rated voltage:440V 50Hz short(S2) working standard
5,glue pump motor: 2.2KW rated voltage:440V 50Hz Continuous (S1) working standard
6,glue frequency motor:3.7KW rated voltage:440V 50Hz Continuous (S1) working standard
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
Wallboard and Pedestals	Production by own	HT200
Rotary joints and metal hoses	Fujian quanzhou yujie
Main frequency motor	Hebei hengshui	30KW frequency motor
reducer	Taiwan CPG
bearing	HRB,ZWZ,LYC or zhejiang	Tile roller and pressure roller are from America TIMKEN
Seat belt bearing	Zhejiang wuhuan
High pressure air	Shanghai yingfa
cylinder	Taiwan AirTac
Solenoid valve	Taiwan AirTac
traps	Beijing traps	Inverted bucket
Contactors and Relays	Siemens
Position Sensor	Korea Autonics
Frenquency controller	Taiwan delta
PLC	Taiwan delta
Human machine interface	Taiwan weintek

TQ conveyor bridge
structural feature:
★This portion of the main frame with channel, beam, angle and so connected together.
★Both sides are equipped with safety barriers and security herringbone pedal operation plane is equipped with safety ladder, ensure staff safety and ease of operation.
★Independent frequency motor lift mechanism, PVC conveyor belt, single watt cardboard wavy rule stable.
★All roller surface after grinding hard chrome plating.
★Vacuum tension control, suction tube 5-inch, plus regulating valves, air flow infinitely adjustable.
★Electric correction device II sets shutter correction double guide column positioning, screw drive, fast and accurate positioning, walking steadily.
★Bridge over the auxiliary high-strength composite sheet, smooth, durable, low friction, reducing cardboard transport resistance.
technical parameter : working width:1800mm 2,operation direction: left or right(Determined in accordance with customer plant)
3,highest height:4700mm
4,working speed:200m/min
roller diameter parameters: upper paper roller and tensioning roller diameter: ¢130mm Conveying roller diameter: ¢180mm over paper roller and guide paper roller diameter:¢111mm On paper towing shaft diameter:¢110mm Power motors and electrical parameters: single facer corrugated paper lifting motor: 4KW (frequency ) 440V 50Hz Continuous (S1) working standard 2,Bridge adsorption fan:3KW 440V 50Hz Continuous (S1) working standard
3,adjust cardboard wide motor: 250W 440V 50Hz short(S2)working standard
Mainly purchased parts, raw materials and origin:

Name of main parts	Brands or place of origin	material
The bridge main skeleton	Tiangang or tanggang	NO20channel iron,NO18beam,NO12channel iron,NO63angle,60*80squal steel and so on connected.
guardrail	tiangang	Ф42mmLow pressure fluid pipe
Paper lifting belt	Shanghai	PVC conveyor belt
Cardboard conveyor belt	Hebei	Parallel transport rubber band
Adsorption inverter fan	Shanghai yingfa motor factory
bearing	HRB,ZWZ,LYC or Zhejiang wanxiang
Seat belt bearing	Zhejiang wuhuan
Paper width adjustment reducer	Shangdong jinzhan reducer
Paper motor(frequency)	Hebei hengshui
Conveying roller and paper roller ,over paper roller	Tiangang Seamless steel pipe
contacts	Siemens
Limit switch	Zhejiang chint

note:all the roller axis surface after grinding and dealing with hard chrome plating.
