Static Mixer for Synthetic Fiber Industry

Product Description

Introduction
ETERNOO MACHINERY CO., LTD is an international company combining design, manufacture, sale. We are very professional on mixing, separation, and filtration equipment. Now we mainly produce 6 series of static mixer, which is SV, SK, SH, SL, SX, SD series, and all kinds of pipe-line filters, precision filters, automatic self cleaning and back washing filters and the other water treatment equipment and accessories.
Static mixer product is widely used for petroleum industry, chemical industry, pesticide, paints, food industry, paper making, environment protection industry, mining and so on, mixing, extraction and reaction.
Static Mixer is precision engineered device for the continuous mixing of fluid materials.Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer.One design of static mixer is the plate-type mixer and another common device type consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 6 mm to 6 meters diameter. Typical construction materials for static mixer components included :
SS304, SS316L, PP, TEFLON, PVDF, PVC, CPVC, Acetal Resin etc.
Static Mixer are manufacturing according to JB/T7660-1995<static mixer standards>,to design, produce and test.
Static mixer model series:SV,SK,SX,SH,SL,SD
Technical parameters:
(1)SV static mixer
SV element is cylinder made of specific bellow plates, the max. Dispersion:1~2um,fluid to fluid uniformity coefficient <5%,Applicable to viscosity<102 CP Liquid to liquid, Gas to gas, Liquid to gas mixing, emulsification, reaction, absorb, extraction, heat transfer etc.

model	DN	Hydraulic diameter	Flow rate(m3/h)	model	DN	Hydraulic diameter	Flow rate (m3/h)
SV-2.3/20	20	2.3	0.5-1.2	SV-7/200	200	7	22-110
SV-2.3/25	25	2.3	0.9-1.8	SV-10/250	250	10	88-176
SV-3.5/32	32	3.5	1.4-2.9	SV-10/300	300	10	125-200
SV-3.5/40	40	3.5	2.2-4.5	SV-15/350	350	15	250-340
SV-3.5/50	50	3.5	3.5-7	SV-15/400	400	15	225-452
SV-3.5/65	65	3.5	5-12	SV-20/450	450	20	270-550
SV-5/80	80	5	9-18	SV-30/500	500	30	350-650
SV-5/100	100	5	14-28	SV-30/600	600	30	550-900
SV-5/125	100	5	24-34	SV-30/1000	1000	30	1200-2500
SV-5/150	150	5	30-60	SV-30/1200	1200	30	1500-3000

(2)SK static mixer

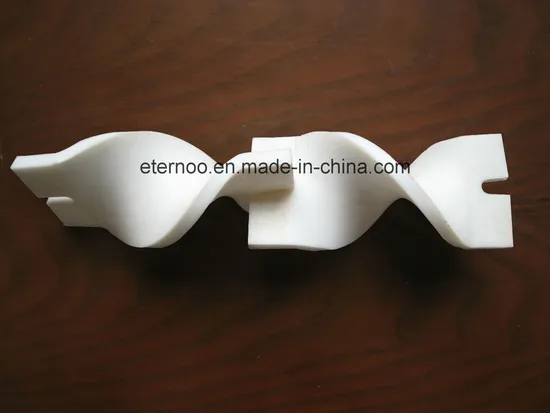

SK element is welded by single pore left and right twisted spiral plate. Max. dispersion:10um,fluid to fluid and fluid to solids uniformity coefficient <5%
Applicable to mixing, emulsification, reaction, absorb, extraction, heat transfer of Chemical, petroleum, medic ion, precision chemical, plastics, color matching, environment protecting, synthetic fibre etc. departments. Especially suitable to small flow along with impurity and high viscosity medium <106CP.

model	DN	Hydraulic Diameter	Flow rate(m3/h)	Model	DN	Hydraulic diameter	Flow rate(m3/h)
SK-5/10	10	5	0.15-0.3	SK-50/100	100	50	14-28
SK-7.5/15	15	7.5	0.3-0.6	SK-62.5/125	125	62.5	22-44
SK-10/20	20	10	0.6-1.2	SK-75/150	150	75	31-66
SK-12.5/25	25	12.5	0.9-1.8	SK-100/200	200	100	56-110
SK-16/32	32	16	1.4-3.2	SK-125/250	250	125	88-177
SK-20/40	40	20	2.2-4.5	SK-150/300	300	150	127-250
SK-25/50	50	25	3.5-7	SK-175/350	350	175	173-340
SK-32.5/65	65	32.5	5.9-12	SK-200/400	400	200	226-450
SK-40/80	80	40	9-18	SK-250/500	500	250	353-700

(3)SX static mixer
SX element is made of many X shape cross elements. uniformity coefficient <5%.
Applicable to middle and high viscosity <104CP fluid to fluid reaction, mixing, absorb process or liquids who producing high polymer products, especially for bigger capacity.

Model	DN	Hydraulic diameter	Flow rate(m3/h)	Model	DN	Hydraulic diameter	Flow rate(m3/h)
SX-12.5/50	50	12.5	3.5-7	SX-50/200	200	50	56-110
SX-16.25/65	65	16.25	6-12.25	SX-62.5/250	250	62.5	88-176
SX-20/80	80	20	9-18	SX-75/300	300	75	125-250
SX-25/100	100	25	14-28	SX-87.5/350	350	87.5	173-340
SX-31.25/125	125	31.25	22-44	SX-100/400	400	100	226-450
SX-37.5/150	150	37.5	30-60	SX-125/500	500	125	350-700

(4)SL static mixer
SL element is made of half side of X shape element. fluid to fluid and fluid to solids uniformity coefficient <5%
Applicable to chemical, petroleum and greese industry, viscosity<106CP or high polymer mixing, and heat exchanging, mixing at same time.

model	DN	Hydraulic diameter	Flow rate (m3/h)	Model	DN	Hydraulic diameter	Flow rate (m3/h)
SL-12.5/25	25	12.5	0.7-1.4	SL-100/200	200	100	56-110
SL-16/32	32	16	1.4-2.9	SL-125/250	250	125	88-176
SL-20/40	40	20	2.3-4.6	SL-150/300	300	150	125-250
SL-25/50	50	25	3.5-7	SL-175/350	350	175	173-340
SL-40/80	80	40	9-18	SL-200/400	400	200	226-450
SL-50/100	100	50	14-28	SL-250/500	500	250	350-700
SL-75/150	150	75	32-64	SL-300/600	600	300	350-700

(5)SH static mixer
SH element is made of double pores, there is fluid re-distribute space between elements. Fluid to fluid and fluid to solids uniformity coefficient <5%
Applicable to mixing, emulsification, color matching, plastic injection, heat exchanging process of precision chemical industry, petroleum, greese, plastics, synthetic fibre, mining industry. Especially for clean medium with higher mixing requirements viscosity<106CP.

Model	DN	Hydraulic diameter	Flow rate(m3/h)	model	DN	Hydraulic diameter	Flow rate(m3/h)
SH-3/15	15	3	0.1-0.2	SH-19/80	80	19	4-8
SH-4.5/20	20	4.5	0.2-0.4	SH-24/100	100	19	6.5-13
SH-5/25	25	5	0.5-1.1	SH-36/150	150	36	31-63
SH-7/32	32	7	0.9-1.8	SH-49/200	200	49	54-180
SH-9/40	40	9	1.6-3.2	SH-74/300	300	74	124-248
SH-12/50	50	12	2.3-4.6	SH-124/500	500	124	174-348

(6)SD static mixer

Model	DN(mm)	Hydraulic diameter(mm)	Flow rate(m3/h)	model	DN	Hydraulic diameter	Flow rate(m3/h)
SD-5/10	10	5	0.15-0.3	SD-25/50	50	25	3.5-7
SD-7.5/15	15	7.5	0.3-0.6	SD-32.5/65	65	32.5	5.9-12
SD-10/20	20	10	0.6-1.2	SD-40/80	80	40	9-18
SD-12.5/25	25	12.5	0.9-1.8	SD-50/100	100	50	14-28
SD-16/32	32	16	1.4-3.2	SD-62.5/125	125	62.5	22-44
SD-20/40	40	20	2.2-4.5	SD-75/150	150	75	31-64
