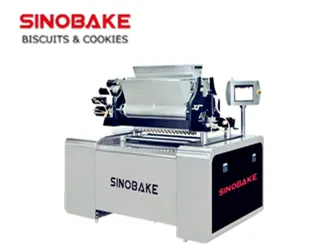

Sinobake Three Color Cookie Machine

Product Description

Three color cookie machine
Parameters:

MODEL	WORKING WIDTH	POWER(KW)	SPEED(TIMES/MIN)	NUMBERS OF MOLDS(A ROW)
CK3D600	600mm	About 14.5	Farci:55; wire cut:80; depositing:60	10

Features:
1. This machine is mainly used for the billet forming of high fat cookies and cakes
2. Servo motors are used for the meshing and lifting of groove roller, feed pump and kneading components
Drive, independent motor control, frequency control
3. Feeding speed, extrusion speed and other parameters can be controlled by touch screen, which is easy to operate
4. The material pump assembly is fixed with worm gear and worm clamp, which can be quickly realized by rotating the hand wheel
Clamp or release the pump assembly for easy disassembly, cleaning and replacement
5. Eccentric wheel clamping is adopted for filling runner assembly, which can be quickly clamped or released to facilitate removal and cleaning
6. Eccentric connecting rod mechanism is adopted for the periodic action of the kneading component. Speed parameters can be adjusted independently for meshing and lifting
7. Press roller surface teflon treatment, surface smooth non-sticky cake, through the frequency regulation
8. Equipped with a multi-function car, auxiliary refueling pump components, extrusion die components, easy to unload the pump and mold cleaning
9. The pump gear adopts herringbone teeth, so the feeding quantity is more accurate
10. The sauce filling groove roller assembly and the feed pump assembly can be taken out separately for cleaning, and the installation and disassembly are convenient and simple
11. The working height of the steel belt can be adjusted conveniently and quickly by hand wheel
12. The machine straddles the steel strip and the pie lands directly on the strip
13. The surface of the main structural parts is plated with hard chromium, not easy to rust
Material standard:
1. The side plate is made of Q235 carbon steel with a thickness of 20mm after processing, and the surface is plated with hard chrome
2. 7050 aluminum alloy is used for the side plate and connection plate of the nose, and the surface is treated with teflon
3. Imported food-grade POM materials for pump teeth; Pump body material with 7075 aluminum alloy, the surface of teflon treatment
4. The filling channel template is made of 7050 aluminum alloy, and the surface is treated with teflon.
Imported food grade POM materials for discharging mould;
5. Use SUS304 stainless steel for cover, support plate and hopper
6. The feeding trough roller straight after: Ø 120, 147, Ø material adopts SUS304 stainless steel
7. This machine USES 8 sets of servo, the servo motor USES french brand, and the reducer USES Taiwan brand precise planetary helical gear reducer
The press-roll reduction motor USES the brand of Taiwan yongkun
8. The control appliances mainly use well-known brands
9. NSK brand for bearing; THK brand for guide rail
10. Use food-grade silicone sealing ring
