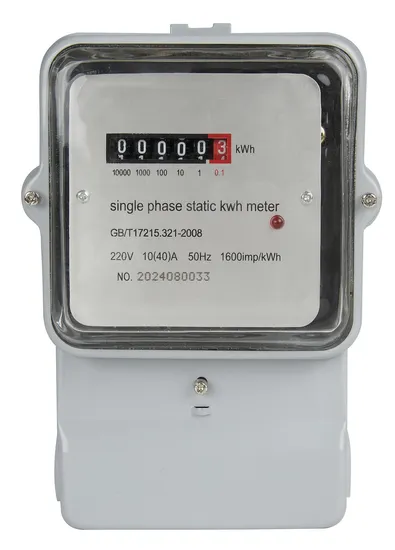

Kwh Energy Watt Hour Dds-20 Single Phase Two Wire/Three Wire Meter

Product Description

kWh meter
PRODUCT INFORMATION
DDS-20 Series single phase electronic energy meter are adopt stable performance,low power consumption of industrial components, use the process carefully design and manufacture.
SPECIFICATIONS

Technical Data
Type	DDS2203-20 Register
Display	5+1
Accuracy	Class 1
Rated Voltage (Un)	220V Or 240V Or Other
Base Current (Ib)	5A, 10A,15A or other
Max Current (Imax)	20A, 40A or other
Frequency (Hz)	50Hz Or 60Hz (±5%)
Starting Current (mA)	0.4% Ib
Power Consumption of Current	≤1W 10VA Per Phase
IP Class	IP51
AC Voltage Withstand	2KV for 1 Minute
Impulse Output Rate (Imp/kWh)	1600, 800 Or Other
Operating Temperature	-20°C To +55°C
Storing Temperature	-40°C To +70°C
Operating Humidity	≤75%
Storing Humidity	≤95%
Communication	N/A
LCD Display Backlight	N/A
Battery	N/A

*For special requirements, such as Anti tamper,RS485,IR etc.,it is to be discussed for settlement
APPEARANCE Diagram
Dimensions
