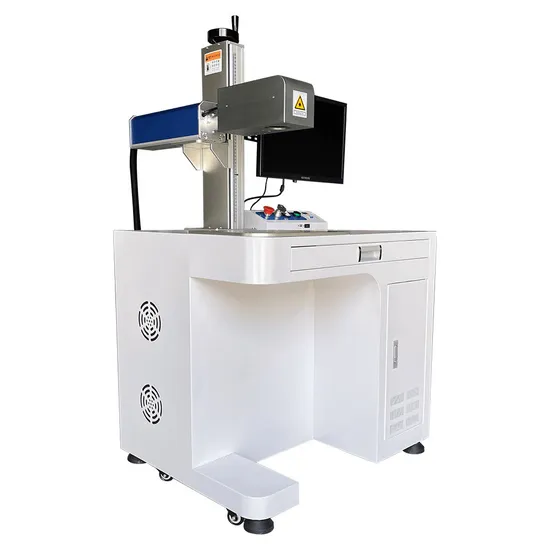

3D Desktop Fiber Laser Marking Machine 100W

Product Description

3D Deep Engraving Fiber Laser Marking Machine for metal HM-3D series 3D laser marking machine adopts imported core components, it is equipped with high-speed,high precision 3D galvo scanner, and our self-developed 3D specified software and control system. These high-quality configurations ensure the system can make ultra-fine processing on any curved surface parts.
The machine will not deviate the focal point when working, it can real-time trace the deep-curved focuses. This makes the machines' efficiency and performance much better than the traditional 2D fiber laser marking machine. It totally breaks the traditional 2D marking model. The machine open up a new mode of 3D marking on oblique planes, segment gaps, cylinders, circular cones, spherical surfaces and extruded surfaces .
Technical Parameters

Model	HM-3D-M30
Laser Power	30W
Laser Type	Fiber Lasers
Wavelength	1064nm
Laser Pulse Frequency	20-200Khz
Laser Source Lifetime	≤10000h
Etching Speed	<8000MM/s
Repetition Precision	0.01mm
Working Style	XYZ 3D System
Min. Line Width	0.001mm
Power source	AC110V/220V ± 10%, 50/60HZ
Cooling Mode	Air Cooling
Graphic Formats Supported	PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG
Power Source	AC110V/220V± 10%, 50/60HZ
Gross Power	<1000W(not included extra device)
Warranty	1 Year
Processing Area	3D:100*100*40MM(Optional)
	2D:300*300MM,400*400MM,600*600MM(Optional)
Operating temperature	10ºC-40ºC
Humidity	5% to 85% (No Condensed )
Working Environment	Clean, Free of Dust

Performance Features 1) With small size and compact structure, the fiber laser marking machine is convenient to move.
2) Long lifespan of fiber laser source: 100 000 hours
3) The machine has good scanning galvanometer, with good seal, small volume, compact.
4) Good Scaps controller, USB interface, swift and stable transmission, the machine can work with a Laptop.
5) High Precision: up to 0.0012mm, bring you the fantastic and satisfied marking effect.
6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.
7) No Consumables: It can work for more than 10 years without any consumables.
8) Fast Speed: 800 standard characters per second, is 3 to 5 times above that of traditional products.
9) The fiber laser beam no need to adjust the laser optical path.
10) Low consumption: <400W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
11) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser
Application Industry
Gold & Silver Jewellery, Sanitary Ware, Foof Packing, Tobacco Products, Medicine Packing, Medical Apparatus and industries,
watches & glassware, auto accessories and electronic hardware. Applicable Materials Gold & Sliver, Stainless Steel, Ceramic, Plastic, Glass, Stone, Leather, Cloth, Bamboo and so on.
Typical case: Auto accessories marking, tobacco products marking, beer bottle marking, ring marking, electronic products marking and etc.
Samples Show
Detailed Pictures
FAQ Q: How to Install the machine?
A: After receiving our machine, customers do not need to install it and can use it directly.
Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide a user manual of the software. Generally speaking, an operator, who is not familiar with fiber laser printing machines before can still operate it very well. According to customers' requests, we can send our technician to customer's plant for machine training or customers can come to our plant for machine training if needed.
Q: In case the machine exists the problem, how to do after-sales service?
A: We provide two years machine warranty. During the two-year warranty, in case of a machine exists a problem, we will provide parts required free of charge by express. But as for the parts damaged artificially, it does not fall on our warranty list. After the warranty, we still provide lifetime service.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt a plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by the waterproof plastic bag.
Q: What's the delivery time?
A: Generally speaking, the lead time is 5-7 working days after receiving the payment.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need it. We can customize the design as customers request.
Q: What're the consumables for fiber laser marking machines?
A: It does not have consumables. It's very economical and cost-effective.
