170 Gasoline Engine Agricultural Machine Power Tiller Cultivator Machine

Product Description

Product Description

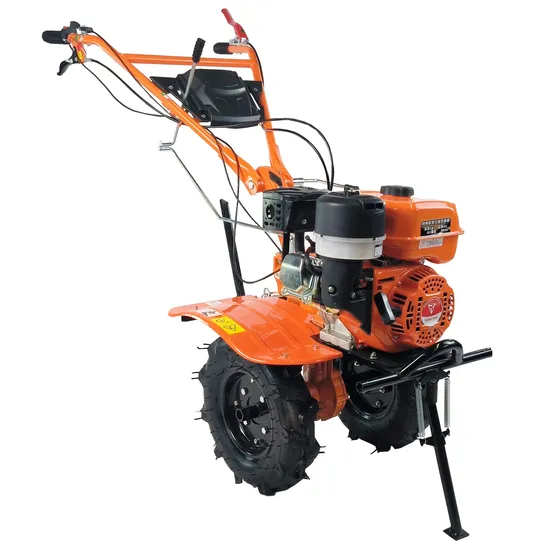

170F Gasoline Tiller Cultivator Machine Agricultural Machinery
For agricultural operators, this machine is simple in structure, light in weight, easy and convenient to use. Not only does it have a user-friendly portable handle, there are other portable switches on the handle, such as clutch switch and throttle switch.
These allow agricultural operators to control and start the machine's functions more conveniently. And this machine adopts the transmission method of direct-connected gear box, which has a strong carrying capacity and can transmit a large torque.
It can output power stably and improve working efficiency when it is required to carry out agricultural work with large traction and digging force. And it can also be used with rotary cutter, trimming wheel, dry land cutter and other tools to complete rotary plowing, soil cultivation and other operations, saving the operator's cost.

Product Name			170 Gasoline Tiller Machine
Model Name			1WG4.0-100FQ-ZC
Specification Model			Handheld
Matching Engine	Model Name		170F/P Gasoline engine
	Structure Type		Forced air-cooled, four-stroke, swashplate, single-cylinder
	Nominal Power		4 kW
	Nominal Speed		3600 r/min
	Starting Mode		Hand pull start
	Fuel Type		Petrol
Overall Dimension(mm)			1680x1000x800 mm
Weights			70kg
Transmission Mode			Gear
Connection Mode			Direct connection
Adjustment of Handrail		Horizontal Direction	0 °
		Vertical Direction	100°
Knife and Roller		Speed	Fast gear F:127 r/min Slow gear S:83 r/min
		Maximum Turning Radius	180 mm
		Total number of knives installed	24
Type of rotary ploughing knives			Dryland Knife
Main clutch		Type	Friction blade type
		Condition	Normally open
Ploughing width			1000 mm
Ploughing depth			≥100 mm
Working speed			0.1~0.3 m/s
Hourly productivity			≥0.04 hm²
Fuel consumption per unit of working area			≤35 kg/hm ²

Detailed Photos

Portable Handle
The handles are made of rugged steel to ensure stability and durability in harsh field conditions. The ergonomic design of the handle allows the operator to hold the handle more comfortably and naturally, reducing hand fatigue and discomfort.
Pneumatic Tires
Pneumatic tires have better cushioning and stability, allowing the operator to control the machine better when working in the field. In the face of complex road conditions, pneumatic tires have better adhesion, can adapt to a variety of complex road conditions, to ensure the smooth completion of agricultural operations.
Manual Pull Start
Compared to electric start, manual pull start can generate power at the moment of pulling the rope, allowing the engine to start quickly and reducing waiting time. Manual pull start maintains a high start rate even in harsh environments.
