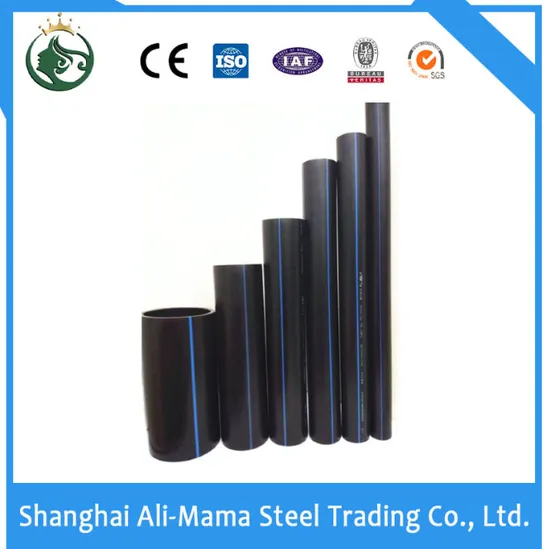

High-Density Polyethylene Pipe for Cold & Hot Water & Electric Conduit Pipe Sch40 Sch80 Plastic Pipe Corrugated /PVC-U/Mpp/PPR/Hard Plastic/ Sotcket Pipe 6m 12m

Product Description

Product Name	Factory Outlet Large Diameter 315mm 350mm 400mm 600mm 630mm PVC Plastic Pipe Price
Material	Polyvinyl chloride
Color	White Grey or customized
Standard	GB/T 5836.1-2006
Length	4m 6m or 12m or as required
Feature	corrosion resistance and pressure resistance
Application	Water supply, irrigation and drainage

(DIN Standard,DIN8061,DIN 8062 )UPVC Pressure pipe for water supply PVC Pipe Drinking Water
nominal outside diameter dn	S series SDR series and nominal pressure
	S16	S12.5	S10	S8	S6.3	S5	S4
	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11	SDR9
	PN0.63	PN0.8	PN1.0	PN1.25	PN1.6	PN2.0	PN2.5
	nominal wall thickness en
20	-	-	-	-	-	2.0	2.3
25	-	-	-	-	2.0	2.3	2.8
32	-	-	-	2.0	2.4	2.9	3.6
40	-	-	2.0	2.4	3.0	3.7	4.5
50	-	2.0	2.4	3.0	3.7	4.6	5.6
63	2.0	2.5	3.0	3.8	4.7	5.8	7.1
75	2.3	2.9	3.6	4.5	5.6	6.9	8.4
90	2.8	3.5	4.3	5.4	6.7	8.2	10.1
110	2.7	3.4	4.2	5.3	6.6	8.1	10.0
125	3.1	3.9	4.8	6.0	7.4	9.2	11.4
140	3.5	4.3	5.4	6.7	8.3	10.3	12.7
160	4.0	4.9	6.2	7.7	9.5	11.8	14.6
180	4.4	5.5	6.9	8.6	10.7	13.3	16.4
200	4.9	6.2	7.7	9.6	11.9	14.7	18.2
225	5.5	6.9	8.6	10.8	13.4	16.6	-
250	6.2	7.7	9.6	11.9	14.8	18.4	-
280	6.9	8.6	10.7	13.4	16.6	20.6	-
315	7.7	9.7	12.1	15.0	18.7	23.2	-
355	8.7	10.9	13.6	16.9	21.1	26.1	-
400	9.8	12.3	15.3	19.1	23.7	29.4	-
450	11.0	13.8	17.2	21.5	26.7	33.1	-
500	12.3	15.3	19.1	23.9	29.7	36.8	-
560	13.7	17.2	21.4	26.7	-	-	-
630	15.4	19.3	24.1	30.0	-	-	-
710	17.4	21.8	27.2	-	-	-	-
800	19.6	24.5	30.6	-	-	-	-
900	22.0	27.6	-	-	-	-	-
1000	24.5	30.6	-	-	-	-	-
Note:Nominal wall thickness en will be subject to design stress σS12.5MPa

HDPE pipes and fittings are made from a thermoplastic material, which means they can be melted and re-melted to form different shapes and sizes. Here are some of the key characteristics of HDPE pipes and fittings: High Strength: HDPE pipes and fittings have high tensile strength and can withstand heavy loads. They are resistant to cracks and breakage under normal operating conditions. Chemical Resistance: HDPE pipes and fittings are resistant to a wide range of chemicals, making them suitable for use in corrosive environments. UV Resistance: HDPE pipes and fittings have excellent UV resistance, making them ideal for use in outdoor applications. Flexibility: HDPE pipes and fittings are flexible, making them easy to install and adapt to changes in the piping system. Lightweight: HDPE pipes and fittings are lightweight, which makes transportation and installation easier and more cost-effective. Longevity: HDPE pipes and fittings have a long service life, with a lifespan of up to 100 years, making them a reliable and durable choice for piping systems.
PVC pipes advantage
1) PVC pipe is low in wasted energy, it's 70 KJ/m3, steel is more than 4.5 times than PVC. It's fit the philosophy that advocating green earth and energy conservation.
2)Inside of PVC pipe is smooth, water rate is 0.009 faster than rough factor, but lower than other
material pipe. It can save about 20% electricity by using transfusion.
3) PVC pipe has good function of mechanics and stands corrosive nature, light and easy to install, don't need to maintain. The
usage life for at least 50 years, it's about 2.5 time than metal pipe.
4) PVC pipe can save 16-37% in installation and service fee than iron pipe. As conduit can save 30-33% than metal conduit. Using
in hot and cold water, can save 23-44% that use the same size of brass pipe.
5) Water dissolve teat approves that PVC pipe can not affect the water quality; it's the best choice for the water.. Company Profile
Shanghai Ali-mama Steel Trading Co.Ltd Known as Ali-Steel, pioneered in 2020, based in SHANGHAI, ALI-STEEL is a professional one-stop steel products supplier. Our business philosophy is"keep improving & win-win cooperation". We furnish best steel and strict quality management, perfect after-sales services, reasonable product prices, good customer reputation as we have faith in integrity of the our business philosophy. We realize the common development of customers, employees and enterprises. We have won trust and support of customers from all over the world. Selling steel all over China and mainly exported to South America, Southeast Asia, Middle East, South Africa, Australia and many more. Our company's main products: Various Carbon Steel and stainless steel pipe and fitting, Cooper tube, Steel constrcution facbrication, Metal including ERW steel pipe , LSAW STEEL pipe and SSAW STEEL pipe, Seamless steel pipe and galvanized Zinc steel pipe, square and rectangular steel pipe, steel plates and steel billets.
Learned over the years,we provide a strict quality control and customer service. ALI-STEEL members are always available to discuss your requirements and ensure full customer satisfaction. ALI-STEEL also welcomes OEM and ODM motors. Wether you select a current product from our catalogue or you seek engineering assistance for your application, you can talk to our customer service center about sourcing requirements.
Ali steel trading company is a bridge which is helping you to open the window for imports and exports of steel all over the world.
Products are in compliance with the international standards and approved by the third party production. That is why our sales are increasing constantly. A huge credit for which also goes to our customers' valuable feedbacks as they have expressed praise and recognition. You are always welcome to visit our factory.
We hope to establish a long term cooperation with you.
Shipment Service
Certifications

Customer Photos
FAQ Q1:How about thequality?
A:Third party inspections are always welcomed, like TUV. All of the goods will be released together with MTC and stamped by TPI.
Q2: How long is the delivery time?
A: Generally about 5-10 days if the goods in stock. Or will be 15-20 days if the goods are not in stock. And alsoaccording to the quantity.
Q3:Do you provide samples? Free or not?
A: Yes, we could offer the sample for free but do not pay the cost of freight.
Q4:May I customize the steel pipe?
A:Sure you can, we can produce according to your requirement, you can send the CAD ordesign drawing.
Q5:Any value-added Services?
A:Fottunately for you,we are very experience in this industry. We have equipped our warehouse with the necessitiesto perform in-house painting,coating,pipe cutting, jointed welding, and make machanical fabricate per to request.
Q6: How about the trade terms?
A: EXW, FOB, CFR, CIF, LC will be accepted.
