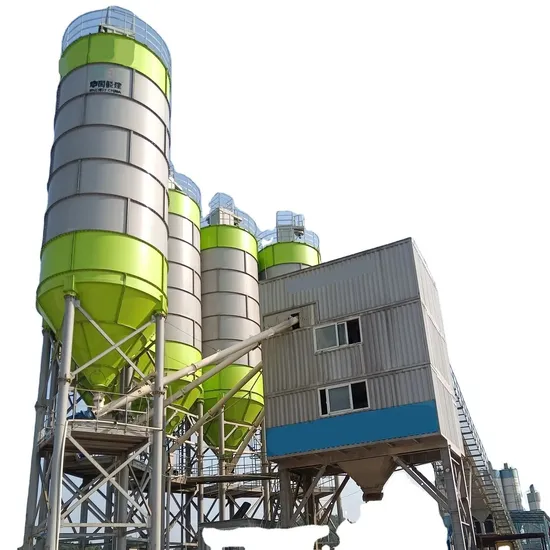

New Chinese Zoomlion 180cbm/H Concrete Batching Mixing Plant Hzs180r
Basic Info.
Model NO.
HZS180R
Type
Concrete Mixing Plant
Shotcrete Type
Semi-Dry
Machining Process
Hydraulic
Structure
Spiral Type
Productivity
180m²/h
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000, CE
Condition
New
Color
White
Theoretical Output Capacity (M³/H)
180
Theoretical Production Periods (S)
60
Aggregate Storage (M³)
4*20
Max. Weighing Value of Slant Belt Convey
600
Total Installed Power (Kw) for Reference
220
Transport Package
3050mm*2530mm*2680mm
Specification
3050mm*2530mm*2680mm
Trademark
Top Brand
Origin
China
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
3050.00cm * 2530.00cm * 2680.00cm
Package Gross Weight
18000.000kg
Product Description
Product DescriptionZOOMLION HZS180R Hot Concrete Batching Mixing PlantZoomlion concrete batching plants' production capacity ranges from 60m³/h to 300m³/h. Tailor-made design can be provided to customers in accordance with regulations and requirements of different countries and regions. The product types include project concrete batching plant, container concrete batching plant, environmental friendly concrete batching plant, etc. With its high efficiency, reliability, intelligence, fineness and green technology, Zoomlion concrete batching plant is trusted and favored by customers around the world.
Bella Song/ Sales Director
Out products:
1) ALL kinds of agricultural machinery
(road roller: single drum vibratory roller, tandem drum vibratory roller, pneumatic roller, light compactor, static three-drum
roller. motor grader. asphalt concrete paver. cold mining machine. soil stabilizer. asphalt mixing plant. stabilized soil mixing plant , etc)
2) All kinds of construction machinery
(Wheel loader, excavator, truck, folklift, cranes, paver, road roller etc.)
Product Parameters
| Theoretical Output Capacity (m³/h) | 180 |
| Discharge Height (m) | ≥4 |
| Mixer | JS3000 |
| Theoretical Production Periods (s) | 60 |
| Aggregate Storage (m³) | 4×20 |
| Max. Weighing Value of Slant Belt Conveyor (kg) | 600 |
| The Conveying Capacity of Screw Conveyor (t/h) | 90 |
| Total Installed Power (kW) for Reference | 220 |
| Max. Batching Value and Accuracy of Aggregate (kg) | 3600±2% |
| Max. Batching Value and Accuracy of Cement (kg) | 1500±1% |
| Max.Batching Value and Accuracy of Powder Admixtures (kg) | 600±1% |
| Max. Batching Value and Accuracy of Water (kg) | 700±1% |
| Max. Batching Value and Accuracy of Liquid Additive (kg) | 60±1% |
