Product Description

HYDRAULIC SYSTEM
ONE-BUTTON TWIN PISTON RETURN
With one-button operation, both of the pistons can be automatically returned into the water tank, which effectively shortens the time for replacing the piston and makes maintenance easier.
ONE-BOTTON HIGH AND LOW PRESSURE SWITCHING
Switch between high and low pressure with one button, Easy pumping at high Floors.
HYDRAULIC INTEGRATION BLOCK
It adopts hydraulic integrated valve group, compact design, Concise oil passage, Simple and reliable connection of hydraulic pipeline, Reduce the system fluid resistance keep the system in reasonable temperature.
EFFICIENT PUMPING SYSTEM
STRONG PUMPING SYSTEM
Advantages of high-pressure large-displacement conveying, unique design of mixing blades, small mixing dead angles, strong design and strong suction performance, suitable for C15-C70 concrete pumping.
DUAL DRIVE LUBRICATION SYSTEM
Equipped with a dual-drive lubrication pump, which combines manual and fully-enclosed automatic relubrication technology, Effectively ensure the lubrication performance of moving parts and extends the service life.
COMMUTATION BUFFER TECHNOLOGY
Adopt the new generation of flexible control technology to minimize the hydraulic shock, Reduce noise and improve pumping stability.
STRONG POWER SYSTEM
ENGINE
Adopt famous international brand (DUETZ or COMMINS), big output power and torque not only guarantee the powerful working and complete combustion, Also reduce the emmissions.
HIGH-END ENERGY SAVING TECHNOLOGY
Using the latest algorithm to optimize the engine power matching, The pumping efficiency increases by up to 15%, and the fuel consumption reduces by up to 10%.
ELECTRIC SYSTEM
INTELLIGENT ELECTRIC CONTROL SYSTEM
1. EQUIPMENT MANAGEMENT:
DYNAMIC MONITORING: Equipped with a powerful human-computer interaction system, Real-time feedback of equipment operating conditions.
SAFE OPERATION: Set multiple security protection modes to prevent misoperation and damage to equipment.
SELF-DIAGNOSIS: Real-time monitoring of equipment status, Effectively improving troubleshooting time by 70%.
2. DATA ANALYSIS:
MAINTENANCE TIPS: Prompt maintenance tips according to working hours and pumping volume.
3 INFORMATION MANAGEMENT
DATA RECORDING:Record running time of core components such as pumps and engine.
EXCELLENT AUTOMATIC PROTECTION SYSTEM
OVERLOAD PROTECTION: When the engine is overloaded or overspeed, the system will automatically stop working to avoid damage to the engine and oil pump.
REAL-TIME MONITORING OF DIESEL:Automatic warning, when the fuel is insufficient, To ensure that the engine will not be damaged.
EXTREME WEAR-RESISTING TECHNOLOGY
DELIVERY CYLINDER
The inner layer is plated with chrome and its service life can reach to above 100,000m³ due to the good wear resistance.
GLASS PLATE/CUTTING RING
Made of rigid alloy with special process, extending service life.

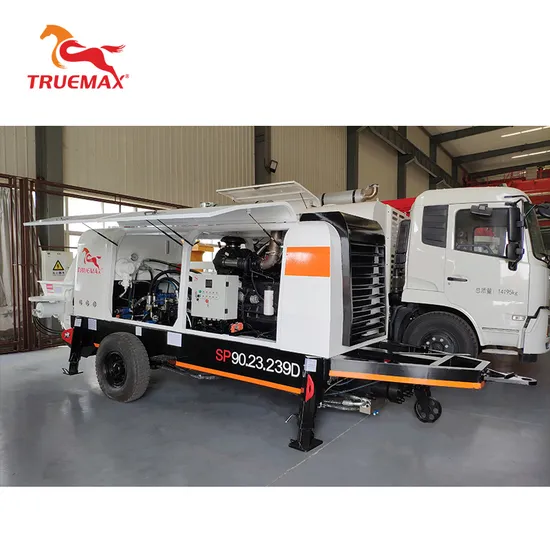

ITEMS		UNITS	SP50.10.60D	SP80.18.186D	SP90.23.239D
Performance	Max.Theo.Output(Low/High)	m³/h	49/26	85/50	90/50
	Max. Concrete Pressure(Low/High)	MPa	5/10	10/18	11.6/23
	Main oil Pump	/	Kawasaki	Rexroth	Rexroth
	Distribution Valve	/	S Valve	S Valve	S Valve
	Concrete Cylinder(Bore×Stroke)	mm	φ180×1200	φ200×1800	φ200×1800
	Hopper Size(Capacity×Feeding Height)	m³×mm	0.5×1335	0.7×1410	0.7×1370
Power system	Engine	/	Cummins	Deutz	Cummins
	Rated power	kW	60	186	239
	Rated Speed	r/min	2200	2100	2000
Hydraulic system	Hydraulic System	/	Open Circuit	Open Circuit	Open Circuit
	Type of Cooling	/	Air Cooling	Air Cooling	Air Cooling
Overall	Overall Dimensions(L×W×H)	mm	5333×1910×2606	7130×2060×2680	7315×2060×2650
	Total Weight	kg	4400	7300	8100

Production Show:
Our Service:
Faster speed of response of service Modern transportation network of railway and aviation,make sure that all spare parts got delivered in time.

Apart from supplying only the best quality products, we also have available our technical and management solutions.
Our service teams always ready to provide expertise to you. Truemax is ready to provide you with a full range of services.

Best service effect to win your satisfaction and trust We continue to work for guests providing customized system solutions and provide best support and services.Because of the formidable technical team, we have provided high quality tour service to all guests.
Company Profile:
Zhejiang Truemax Engineering Co Ltd. is a manufacturer and high-tech enterprise integrating R&D, design, manufacturing and marketing.As the company's core industry,engineering construction machinery currently mainly covers three series:concrete machinery,crushing machinery and construction machinery
Truemax insists on a high starting point and high quality, and uses 5% of its sales revenue every year on technologe research and development, trying to making high-end products. In terms of management, Truemax adopts the 6S management system,so quality control is strictly implemented in all aspects of parts procurement, production, packaging and shipment,which makes our products reach the international advanced level.
Truemax actively responds to the national "Made in China 2025" strategy and the call of energy conservation and environmental protection.With the help of the national "One Belt and One Road" strategy, it continues to introduce professional talents and advanced technology. Through unremitting efforts, our services reach every corner of the country. Users anywhere in the country can get thoughtful and meticulous service.
Competitive Advantage:
FAQ:
Q: Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.
Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, and ect.
And we have strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.
Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
