One-Handed Lifting Equipment for Box High Frequency Manual Handling Device for Bag

Product Description

One-handed Lifting Equipment for Box High Frequency Manual Handling Device for Bag

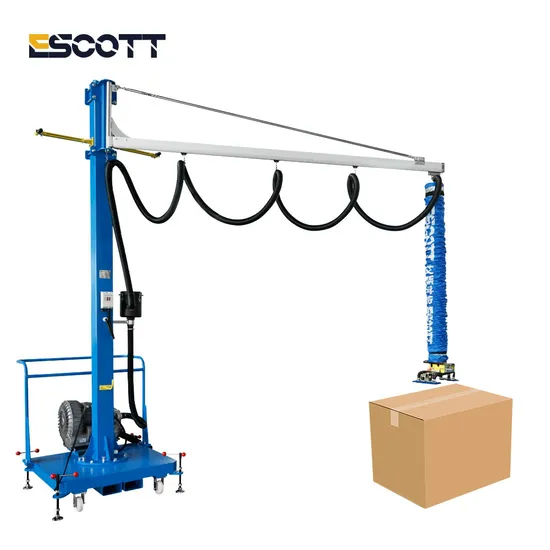

This customized cardboard box/cargo box portable mobile vacuum lifter is designed for handling light to medium-weight items such as cardboard boxes and cargo boxes. It combines advanced vacuum technology and portability, allowing users to easily and efficiently complete the handling of item.
Product Parameters
Equipment:model EST160M Maximum load:Horizontal suction dense workpiece 50kg
Motor power: 4Kw, 380V, 3-phase, 50Hz
Lift stroke: 1.7m
Column cantilever lift specifications
Guide material:Aluminum alloy guide rail,length 3m
Capacity: 50Kg
Post height:4.0 m
Turning Angle:About 270 degrees
Accessories:Vacuum Blower,Lifting the assembly,Vacuum suction cups,Vacuum airway,Vacuum filter,Cantilever rails,Uprights,Electric box and accessories
Models for your reference.

Model	VEL100	VEL120	VEL140	VEL160	VEL180	VEL200	VEL230	VEL250	VEL300
Suction Power	30	50	60	70	90	120	140	200	300
Air Hose Length	2500	2500	2500	2500	2500	2500	2500	2500	2500
Air Hose Diameter	100	120	140	160	180	200	230	250	300
Lifting Speed	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s	appr.1m/s
Lifting Height(mm)	1800	1800	1800	1800	1800	1700	1700	1500	1500
vacuum pump	2.2Kw	2.2Kw	2.2Kw	3Kw	3Kw	3Kw	3Kw	3Kw	3Kw
Details	Click on	Click on	Click on	Click on	Click on	Click on	Click on	Click on	Click on

Detailed Photos
1.Air Hose: Allows for the transfer of air to createvacuum suction.
2.Rail: Provides a smooth and stable movement for thelifting machine.
3.Rail Limit: Ensures the lifting machine stays withinthe designated rail area.
4.Column: Supports the overall structure of the liftingmachine.
5.Silence Box (optional): Reduces noise duringoperation for a quieter working environment.
6.Pressure Release Valve: Allows for controlled releaseof vacuum pressure when needed.
7.Filter: Ensures clean air flow and prevents debrisfrom entering the system.
8.Suction Foot: The part that comes in direct contactwith the load to create a secure vacuum grip
9.Lifting Unit: Responsible for raising and lowering theload with precision.
10.Vacuum Pump: Generates the necessary vacuumpressure for the lifting machine to function.
11.Control Handle: Enables easy control andmaneuverability of the lifting machine.
Operation control instructions
(1) Lifting: Pull the control valve stem upward, the vacuum system negative pressure increases, the lifting pipe shrinks, and the workpiece is lifted.
(2)Lower: Pull down the control valve stem, the vacuum system negative pressure is reduced, the lifting pipe is extended, and the workpiece is lowered.
(3)Release: Pull down the control valve stem to the end, the suction cup negative pressure is zero, the suction cup and the workpiece no suction, then the workpiece release.
(4) Knob A is the on-load balance adjustment knob, and the workpiece can be suspended in any position after adjustment.
(5) Knob B is the no-load balance adjustment knob, adjusting this knob can be suspended in the no-load state.
Note:
The operator can adjust the two balanced hover positions at any time according to his height and the different weight of the workpiece.

MAIN FEATURES
1. Customized Design: Customized services are provided according to the specific needs of customers, including size, load capacity, operation mode, etc. to meet the needs of different application scenarios.
2. Powerful Vacuum System: Equipped with a high-performance vacuum pump to ensure safe lifting of cartons and boxes of various sizes. Quick installation and removal to optimize workflow.
3. User-friendly Control: Intuitive controls allow operators to lift and lower loads smoothly and safely. Safety features include an emergency stop button and a visual indicator of vacuum status.
4. Portable Mobility: The use of lightweight materials and compact design makes the entire device easy to carry and move, and convenient for use in different sites and environments.
5. Efficient Vacuum Lifting: Through vacuum technology, it can firmly adsorb cartons or boxes for stable and efficient lifting and handling.
6. Easy to operate: The equipment is usually equipped with an easy-to-use control system, and the user can complete the handling of items with simple operations.
APPLICATION SCENARIOS
- Warehouse management: In large warehouses, it is used to quickly and accurately carry a large number of cartons or packaging boxes, reduce manual labor intensity, and improve work efficiency.
- Production line handling: It is suitable for production lines that need to frequently carry finished or semi-finished products to help realize the automatic flow of materials.
- Logistics distribution center: In the logistics distribution center, it can effectively handle the loading and unloading of incoming and outgoing goods and speed up the turnover of goods.
- Retail industry: Supermarkets, shopping malls and other retail places can also use such equipment to put goods on and off the shelves, reducing the burden on staff.
After Sales Service
1. Personalized consultation
Our professional team will work closely with you to deeply understand your needs, industry characteristics and application scenarios to ensure that the product design meets your expectations.
2. Customized design
According to your specifications and requirements, we provide flexible design solutions covering size, function and material selection to ensure the best performance of the final product.
3. High-quality production
We use advanced production technology and strict quality control to ensure that each customized product has excellent quality and reliability.
4. Fast delivery
We optimize the production process to quickly respond to customer needs and ensure that customized products are delivered on time within the agreed time.
5. After-sales support
We provide comprehensive technical support and maintenance services to ensure that the system continues to operate efficiently, and customers can get professional after-sales service and technical guidance at any time.
Our Factory
FAQ
Q:Are you a manufacture or trading company?
A:We are the manufacturer, has more than ten years of production experience
Q: How long is your delivery time?
A: It is Usually 20 days after confirming the technical sheet and drawings.
Q: What is your price?
A: The price depends on your requirements for the equipment. Accordingto the model, the price is relatively different.
Q: What is the condition of your machine?
A: Brand new, can be customized.
Q:What is the guarantee of after-sales service?
A:Replacement parts within one year, lifelong technical guidance
Q:Mode of transportation?
A: You can choose sea, air, rail transportation (FOB, CIF, CFR, EXW, etc.)
Q:What problems can the Vacuum Lifter solve?
A:1.Perform dangerous or heavy operations in place of humans
2.Improve production efficiency and quality
3.Reduce labor costs and so on
