Eltek Rectifier Power 48V 3000W Module Flatpack 2 48/3000 He 241119.105

Product Description

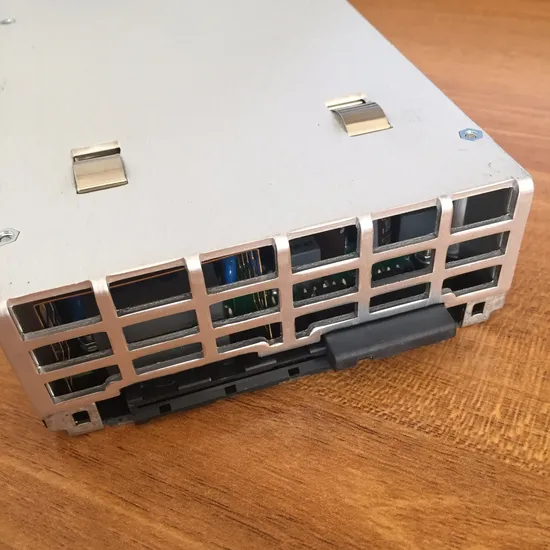

Eltek rectifier module Flatpack 2 48/3000 HE
Part name: Flatpack 2 48/3000 HE
Part Number: 241119.105
AC Input: 100-277V ac
Frequency: 45-66Hz
AC current: 19A Max/ 176V ac
AC Fuse: 20A F
DC Output: 53.5V/56.1A
Key Features:
Highest efficiency in minimum space
Resonant topology makes the module efficiency industry
leading and contributes to the rectifier's ultra compact
dimensions.
Digital controllers
Primary and secondary controls are digitalized, enabling
excellent monitoring and regulation characteristics. Thus,
the number of component has been reduced by 40% - for
highly reliable, long life, trouble free DC power systems.
Heat management
Front-to-back air flow with chassis-integrated heat sinks
gives the module the most suitable working environment
and no limitations in the scalability of the desired system
solution.
Unique connection
A true plug-and-play connection system: time-to-install and
cost-reducing solution.
Global approvals
Flatpack2 is CE marked, UL recognized and NEBS certified for
worldwide installation.
Versatileand powerful solution for any application
The combination of cost-effective design, power density and
reliability makes the Flatpack2 a product family that truly stands
outs and provides unparalleled network availability. The versatility
of the Flatpack2 rectifier means that it can be used in a wide
variety of 48VDC and 24VDC applications across the globe.
Applications
Wireless, fiber and fixed line communication
