Heavy-Duty Vertical Milling Machine with Large Worktable Dimensions

Heavy-Duty Vertical Milling Machine with Large Worktable Dimensions

US$7,800.00
1-2 Pieces
US$4,600.00
3+ Pieces

Basic Info.

Model NO.
4HW/5HW
Type
Tool Milling Machine
Object
Tool
Structure
Dedicated
Milling Cutter Type
Three Blade Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Area
1270*254 1370/1500*305
Long Travel
780/810/900mm
Vertical Travel
500mm
Spindle Speed
80-5440/45-1350
Transport Package
Plywood Case
Trademark
Rowdai
Origin
China
HS Code
8459699000
Production Capacity
1000/Year

Product Description

Product Description

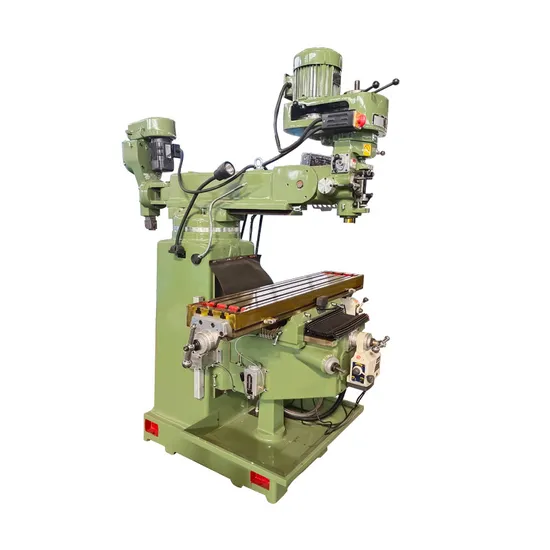

Vertical and Horizontal Turret Milling Machine Fresadora 4HW 5HW Metal Universal Milling Machine
1. The Turret Milling Machine boasts a well-conceived construction and exceptional machining capabilities. With its prowess, it efficiently handles drilling, boring, and milling tasks on planes, inclined surfaces, and slots. Utilizing relevant attachments, it can adeptly manage the milling of helix slots, round surfaces, racks, gears, and splines.2. The Y-axis features a robust rectangular guideway, offering excellent rigidity and stability. Additionally, the guideway on the Radial Milling Machine saddle is lined with TF durable, wearable material, ensuring longevity.3. Equipped with a high-speed milling head sourced from Taiwan, ensuring precise and efficient operations.4. The slideway and table surface undergo a hardening process, enhancing durability and reliability.5. Special tools are employed to machine the T-slot, which does not extend beyond the table edge. This increases the machine's rigidity and imparts an aesthetically pleasing design. 6. The slideway is meticulously hand-scraped to maintain high precision and ensure smooth movement.7. The XYZ axis screws are crafted in Taiwan, guaranteeing superior quality and performance.8. The XY screw is equipped with dual nuts, facilitating easy adjustment of the space between the screw and nut.9. The XY screw bracket, designed as a single base, offers remarkable precision and rigidity.10. The electrical system is engineered in compliance with CE standards, ensuring safety and reliability.
Detailed Photos
Specifications Units 4HW 5HW
Table size mm 1270x254 1370x305
Table travel mm 780/420/400 810/420/400
T slot(number-width-pitch) mm 3-16-65 3-16-65
Spindle taper (V) R8/ISO40
(H) ISO40
(V) R8/ISO40
(H) ISO40
Spindle speed range
rpm
(V)50HZ:65-4500 60HZ:80-5440,16 steps;
(H)45-1350,12 steps
(V)50HZ:65-4500 60HZ:80-5440,16 steps;
(H)45-1350,12 steps
Optional:variable 65-4000 Optional:variable 65-4000
Spindle travel mm 127 127
Spindle feed range mm 0.04,0.08,0.15
(3 steps)
0.04,0.08,0.15
(3 steps)
Distance between spindle axis and table surface mm 0-400 0-400
Main motor power kw 2.2(V)3(H) 2.2(V)3(H)
Head rotation (left - right ) ° ±90° ±90°
Head rotation (front - rear) ° ±45° ±45°
Weight kg 1750 1850
Overall dimension mm 1550x1650x2250 1550x1650x2250

1. This heavy-duty model is constructed from high-grade Meehanite casting, providing sturdy and reliable performance. 2. The Y-axis is supported by solid rectangular slideways, further enhancing stability. 3. All axes are equipped with adjustable dovetail slideways, allowing for precise adjustments and smooth operation. 4. Features right-left handed rotation for versatile machining capabilities. 5. With high concentricity precision, less than 0.01mm is measured in the spindle sleeve, thanks to the precision taper roller bearings. 5. The spindle sleeve is equipped with an automatic feed for efficient operations. 6. A main switch with motor protection, along with right/left handed rotation and an emergency-stop button, ensures comprehensive safety measures. 7. This machine is not only price-efficient but also maintains value stability over time.
Packaging & Shipping
Company Profile
Henan Rowdai Machinery Equipment Co., Ltd. is strategically located in Zhengzhou, the heart of China. With extensive experience in exporting machinery, our commitment extends beyond providing stable quality products.We pride ourselves on offering exceptional customer service and a diverse range of machine tools to the international market. Our product lineup includes Lathe machines, CNC Lathe Machines, Milling Machines, CNC Milling Machines, CNC Machining Centers, Grinding Machines, Hydraulic Presses, Bending Machines, Drilling Machines, Press brakes, Shearing Machines, and Machine tool accessories. Our team includes an expert engineer with years of industry experience and professional training. Our well-trained engineers are dedicated to assisting customers by conducting pre-shipment inspections and monitoring every phase of the production process. Experience the perfect blend of quality products, unparalleled service, and expert guidance with Henan Rowdai Machinery Equipment Co., Ltd. Our commitment to excellence ensures that every aspect, from production to delivery, meets the highest standards of quality and customer satisfaction. Partner with us to access world-class machinery solutions and expert support.
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.
