Two Layer 20 L Plastic Oil Bottle Blow Making Molding Machine Made in China

Product Description

Company Profile
Product Description

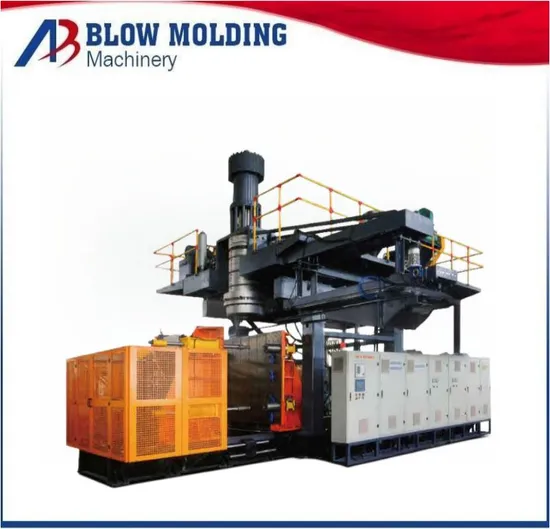

Grease Bottle Blow Molding Machine (ABLD100)
This type of blow molding machine ABLD100 can produce bottle, kettle, can, etc. The machine is especially designed for producing with material PE, PVC, PP and so on. The productive capacity can reach 30-40PCS/hr. Product Parameters

Max. Product volume	100liters
Output capacity	30~40 pcs/h
Screw diameter	100mm
Screw L/D ratio	25 L/D
Screw drive power	45KW
Screw heating capacity	20KW
No.of heating zone	4 zones
Output of HDPE	160 KG/H
Oil pump drive power	37KW
Clamping force	440 KN
Max.size of mold	800X1000mm
Mold stroke	500-1200mm
Max.die diameter	430mm
Die heating power	9.5KW
Die heating segments	5zones
Blowing pressure	0.8mpa
Air volume	1.2M³/MIN
Cooling water pressure	0.3mpa
Water consumption	100 L/MIN

Detailed Photos
Related product
Our Advantages
Our service
FAQ
1. Can the machine customized only for my products?
Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of
parts special request.
2. How about the molds ?
APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth
matching before shipping. Mold raw material is various for optional.
3. What is the business item for this project ?
a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
4. How is APOLLO after-sales service?
A. Inspection
Before delivery, APOLLO takes responsibility to finish the machine in time and send the righ t samples to clients for approval.
Clients also are welcome to APOLLO factory to inspect the testing of machine, so that the provided machine could be safely and
smoothly put into operation once reach the client`s factory.
B. Debugging Instruction
APOLLO takes responsibility to have debugging overseas, and client abroad please sends in vitation forward of time to engineer of
APOLLO , provides the engineer with round-trip tickets, accommodation, food, vehicle and USD80/Day/Person as salary; Before
Tonva`s engineers arrive at the buyer`s factory, the buyer must make sure that all of equipment are put in the correct position in
their factory, the raw material, power and water supply must be ready in the factory.
C. User Training
APOLLO takes responsibility to indoctrinate technical training in both APOLLO and clients' factory to the users, so that they
could understand the machine features and could operate the machine by themselves.
