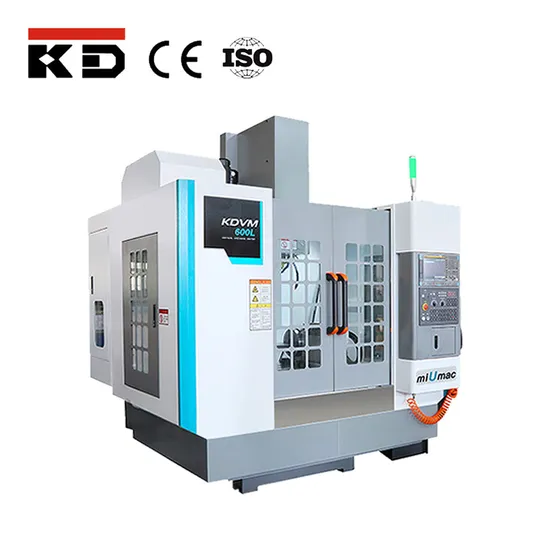

It6 Metal CNC Lathe CNC Wire Engraving Milling Machine with Low Price
| US$28,650.00-35,642.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDVM600L
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
It6
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
750*400mm--1130*510mm
Repearability
+-0.003
Transport Package
Export Standard Wooden Pallets
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
523
Product Description
It6 Metal CNC Lathe CNC wire engraving Milling Machine with Low Price Product Description Product Specifications| MODELS | KDVM600L |
| TRAVEL | |
| X axis | 600mm |
| Y axis | 430mm |
| Z axis | 500mm |
| Spindle center to column | 484mm |
| Spindle end to table | 90-570mm |
| TABLE | |
| Tablesize | 720×400mm |
| T-slot(width×number×space) | 18mm×3×110mm |
| Max.table loading | 500kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 9kw |
| Spindle speed | 8000rpm |
| Driving by belt or gears | Belt |
| Kind of gearbox | without gearbox |
| Cutter removal from spindle | Pneumatic |
| FEED | |
| X/Y/Z fast feed | 36/ 36/ 36m/min |
| Torque axis motors | 11/ 11/ 11Nm |
| ATC | |
| Type (disc/carousel) | Carousel |
| Tool number | 20 |
| Max. tool size (With adjacent tool) | Ф76mm |
| Max. tool size (Without adjacent tool) | Ф150mm |
| Max.tool length | 300mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 2s |
| ACCURACY | |
| Positioning | ≤0.008 |
| Repeatability(X/Y/Z)(ISO) | ≤0.004mm |
| OTHERS | |
| Min.Input | 0.001mm |
| Coolant pump power | 370w |
| Overall dimension | 3550x2100x2400mm |
| Net weight | 3900kg |
