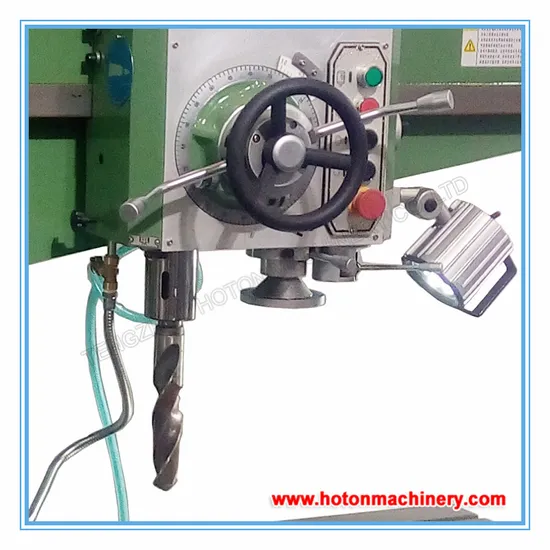

Drilling Machine Vertical Z3080X20A Z3080X25A Radial Arm Drill Machine Made in China
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3080X20A Z3080X25A
Controlling Mode
Hydraulic
Number of Shaft
3
Hole Diameter
50-100mm
Automatic Grade
Hydraulic
Precision
Normal Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Drill Capacity
80mm
spindle travel
400mm
spindle taper
MT6
Power
7.5KW
speed steps
16
Transport Package
Plywood Case
Specification
7500kgs
Trademark
HOTON
Origin
Shandong, China
HS Code
8459590000
Production Capacity
5 PCS/Month
Product Description
RADIAL DRILLING MACHINE FEATURES:
Hydraulic clamping
Hydraulic speed
Hydraulic pre-selection
Electrical machinery double insurance
SPECIFICATIONS:
| SPECIFICATIONS | Z3080×20A | Z3080×25A |
| Max.drilling dia (mm) | 80 | 80 |
| Distance from spindle nose to table surface (mm) | 550-1600 | 550-1600 |
| Distance from spindle axis to column surface (mm) | 450-2000 | 500-2500 |
| Spindle travel (mm) | 400 | 400 |
| Spindle taper(MT) | 6 | 6 |
| Spindle speeds range(r.p.m) | 20-1600 | 20-1600 |
| Spindle speed steps | 16 | 16 |
| Spindle feeding range(mm/r) | 0.04 -3.2 | 0.04 -3.2 |
| Spindle feeding steps | 16 | 16 |
| Rocker rotary angle (°) | 360 | 360 |
| Main motor power( kw) | 7.5 | 7.5 |
| Movements motor power (kw) | 1.5 | 1.5 |
| Weight (kg) | 7500 | 11000 |
| Overall dimensions (mm) | 2980×1250×3300 | 3500×1450×3300 |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
