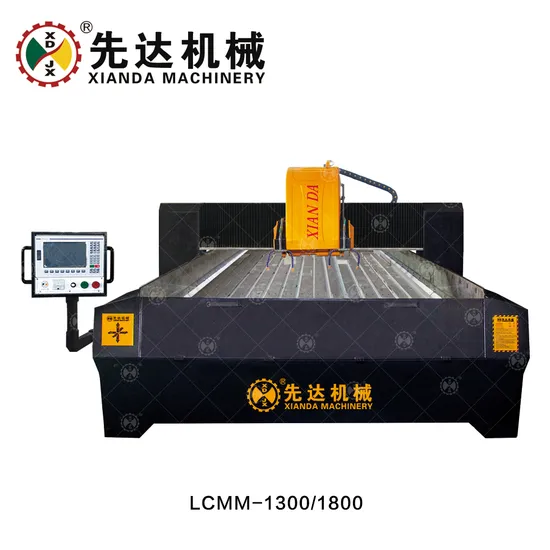

3 Axis Linear Profiling Cutting Machine

Product Description

This machine is controlled by a numerical control system, combined with the strength of profiling machine and the travelling speed and accuracy in machining center. It has the advantages of high efficiency , high precision and high stability, and including functions such as rough cutting, fine cutting ,and fine milling.
It is dedicated to stone processing such as linear and square railing.

Parameter	Unit	LCMM-1300	LCMM-1600
Blade diameter	mm	φ400-φ600	φ400-φ600
Max lifting travel of cutting frame	mm	250	250
Worktable dimension	mm	1300*3000	1600*3000
Main motor	kw	15	15
Gross motor	kw	22	22
Outline dimension	mm	4700*2330*2000	4700*2900*2000
Gross weight	kg	3000	3000
Water consumption	m³/h	4	4

Factory Overviews
Fujian Xianda Machinery Co.,Ltd is a leading company for stone cutting machines and toolsin China, established in 1985 and covers 20,000m³ area which located in Jinjiang Wuli lndustrial area, nearby the longest and oldest stone bridge in the world, named "Wuli Bridge" and next to biggest stone market in the world- Shuitou.
With more than 34 years' experience specializing in developing and producing a series of diamond wire saw machine, column processing machine, bridge cutting machine, carving machine, profiling linear machine, baluster machine, etc. We occupied around 80% market in China for column processing machines, and own more than 30 overseas countries users.
Since its foundation in 1985, we keep"Top Technology and Superior Quality"as our standardfor all machines and got CE, ISO Quality Gold Award , etc.
"China Recommend Building Manufacture Enterprise", "3A Enterprise Credit Evalution" , etcfor company.And we are always the sponsor for education as our CEO Mr Roy is enthusiasticabout the public welfare establishments.
Xianda always keep"Creat the highest value of your stone"as purpose,your visiting andcontacting is always welcomed.
Certifications

Exhibtion
Our Service
* We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.
* After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service.
* We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training. FAQ Q: How to place order to your company?
A: 1. Inquiry-Professional quotation.
2. Confirm the price, lead time, logo, payment term etc.
3. Xianda sales send the Proforma Invoice with seal.
4. Customers make the payment as a deposit and send us Bank receipt.
5. Sales confirm the receipt of down payment . After approval, we will arrange the production & inform the estimated time.
Q: How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery
Q: Are you Manufacturer?
A: Yes,that we are the stone machinery factory for over 30 years.
