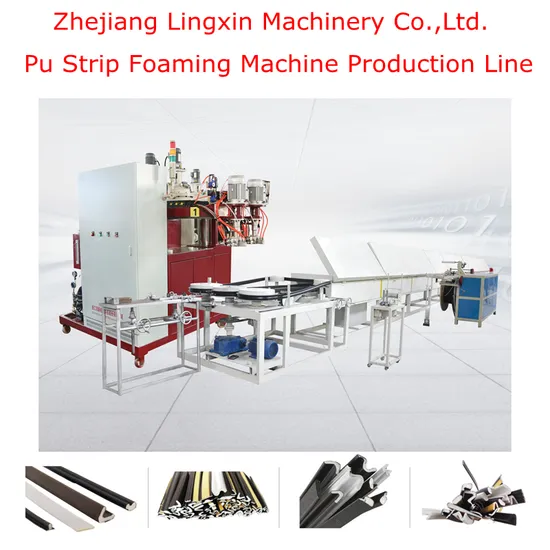

Polyurethane Weatherstrip Seal Production Line /PU Weatherstrip Seal Production Line /PU Foam Seal Making Machine

Product Description

LXPU- M210 type sealing strip casting machine is newly developed by Lingxin company based on learning and absorbing advanced techniques, combining with the characteristics of rapid foaming and molding of polyurethane. It is widely used in the foaming production of electric cabinet door panel, automobile air filter and other sealing strip products, perfectly avoid factors which cause sealing strip quality problems like manual sticking, time wasting, energy wasting, and bad looking corners etc.

Structure Features:
1. Sandwich type material tanks, good heat preservation
2. The adoption of PLC touch screen human-computer interface control panel makes the machine easy to use and operating situation was clear.
3. Mixing head connected with operation system, easy for operation.
4. The adoption of new type mixing head makes the mixing even, low noise, machine sturdy and durable.
5. Boom swing length according to the requirement, multi-angle rotation, easy and fast
6. High precision pump lead to measuring accurately
7. Easy for maintenance, operation and repair.
8. Low energy consumption.
9. Auto sensing liquid level

Technical Parameter:
Total power: 20KW
Power: supply: 380V 50HZ
Compressed air: 0.6-0.8MPa
Casting Flow Rate: 1-4g/s
Weight: 2500kg
Rotated speed: 6000rpm
Mix type: Dynamic
Material tank volume: 80L
Mix range: A: B= 100 : 25-70
Measure accuracy: around 0.5%
Our company:
Certificate:
Welcome to contact with us /send inquiry for more details of machines. We will reply you ASAP. Thanks.
