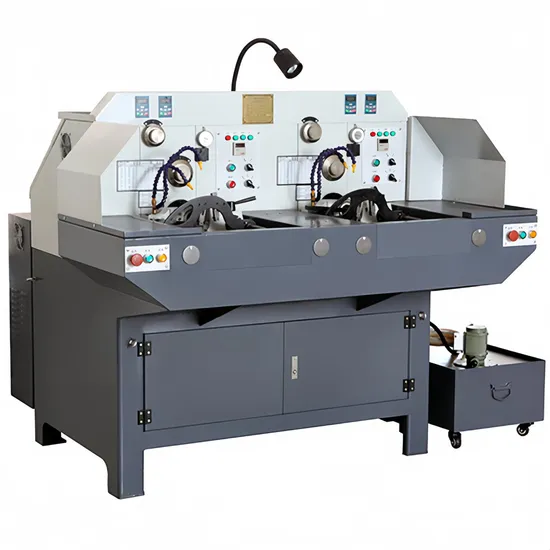

Xchm-4500-2 Manual Horizontal Cylinder Honing Machine for Cylindrical Hole Cylinder CNC Grinding Machine in Stock
| US$20,500.00-36,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XCHM-4500-2
Type
Honing Machine
Processing Object
Cylinder
Abrasives
Whetstone
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Honing Machine
Precision
High Precision
Certification
ISO 9001
Condition
New
Roundness
1um
Cylindricity
2um/100mm
Roughness
Ra0.1um
Work Station
12
Work Inner Diameter
3-120mm
Spindle Speed
250-3000rpm
Max. Honing Length
160mm
Spindle Power
4.4kw
Total Power
6kw
Transport Package
Ship/Train
Specification
600kg
Trademark
SNALPO
Origin
China
HS Code
8460241900
Production Capacity
800pieces/Year
Product Description
Product DescriptionProcessing Diagram
Product Application
CNC honing machine Application scenario
Parts with honing patterns must be processed using honing machines, such as automotive cylinder blocks and liners, motorcycle cylinder blocks, etc. The cross mesh pattern after honing can store oil and form a layer of oil film, which plays an extremely important role in engine operation.
Product Parameters
| CNC honing machine main technical parameters | ||||
| Specifications | Parameters | XCHM-3500 | XCHM-3600 | XCHM-4500-2 |
| Machining accuracy | Roundness | ≤1um | ≤1um | ≤1um |
| Cylindricity | ≤2um/100mm | ≤2um/100mm | ≤2um/100mm | |
| Roughness | ≤Ra0.1um | ≤Ra0.1um | ≤Ra0.1um | |
| Structure | Axis | 1 | 1 | 2 |
| Work station | 1 | 1 | 2 | |
| Spindle | Power | 1.5kw | 2.2kw | 2.2kw*2 |
| Work inner diameter | Φ4-Φ80mm | Φ3-Φ100mm | Φ3-Φ100mm(automatic) Φ3-Φ120mm(manual) | |
| Speed | 25-3000rpm | 250-2500rpm | 250-3000rpm | |
| Stroke | Speed | 80-310times/min | 80-400times/min | 80-250times/min |
| Power | 0.75kw | 0.75kw | 0.75kw*2 | |
| Max. length | 160mm | 180mm | 160mm | |
| Others | Weight | 420kg | 450kg | 600kg |
| Size | 1100*1400*1500mm | 12620*1195*1400mm | 1500*16400*1410mm | |
| Total power | 3kw | 3kw | 6kw | |
Detailed Photos
Work Piece
Packaging & Shipping
Company Profile
