High-Speed CNC Hydraulic Drilling Machine for Steel Plates

Product Description

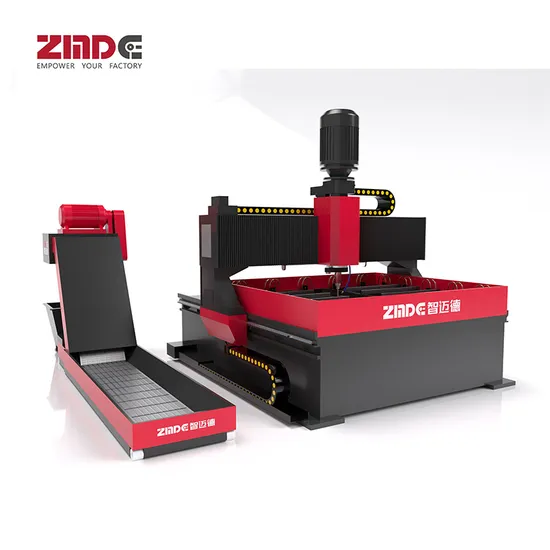

ZMDE Automated High Speed Steel Plate Drilling Equipment CNC H Beam Hydraulic Drilling Machine For Steel Structure

>Economical and Value-Driven Equipment <
1. Crafted from solid, durable materials, this equipment boasts a low failure rate, significantly reducing maintenance costs. All critical components, including ball screws, linear guide vice, hydraulic parts, electrical parts, servo motors, and frequency converters, utilize top-tier industry brands.
2. Features CRT display for automatic chip removal, cutting down manual cleaning time and costs.
3. Ensures high precision and excellent workpiece qualification rates, thus minimizing consumable expenses.
>Effortless Operation, Exceptional Productivity <
1. User-friendly human-machine interface that is clear and visual, with capabilities of generating automatic machining programs.
2. CNC and PLC control ensures pinpoint accurate positioning.
3. Workpieces are securely clamped by hydraulic clamps, and the operator can control the process effortlessly using a foot switch.
4. Equipped with 12 rapid hydraulic clamps distributed around the table, four sets of workpieces can be clamped simultaneously.
5. Small workpieces can be clamped at the four table corners, dramatically reducing production preparation time and boosting efficiency.
6. Clamping small workpieces at the four table corners can significantly cut down the production preparation period and enhance production efficiency.
> Superior Quality with Versatile Applications <
1. Critical components like the gantry, column, and table are built from robust materials, with the main machine weighing up to 6300kg.
2. Versatile across various industries, this equipment is essential for connecting plate processing.
3. Supports a wide range of drilling diameters from 12 to 50mm.
> Ideal for Diverse Production Scenarios <
1. Perfect for continuous production of multiple batches of flat-type workpieces.
2. Suitable for small batch production of multi-species workpieces, capable of processing plates of various shapes including rectangular, round flange, and polygonal. Can handle two or four different plate specifications simultaneously.
3. Capable of producing multiple layers of thinner sheets in stacks, with a maximum drilled hole depth of 100mm.
4. Automatically handles processing start and end points through upper computer software, capable of drilling through holes, blind holes, step holes, and end chamfers.
> Streamlined and Automated Production <
1. High-degree automation with line board integration, enabling automatic positioning based on the drilling program.
2. Optimizes feeding volume according to different hole diameters.
3. Supports automatic and continuous processing of large hole diameters, achieving one-time processing and molding.
4. Equipped with an automatic chip removal function to maintain efficiency and cleanliness.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
