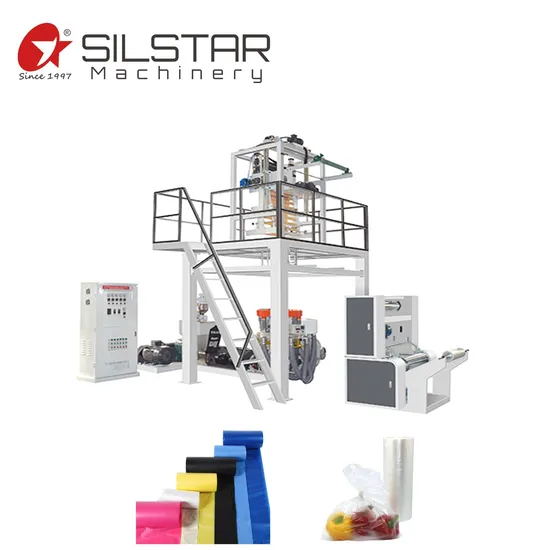

Plastic HDPE, LDPE PE Film Blowing Machine
| US$11,000.00-24,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GBCE-1000
Type
PE Film Blowing Machine
Raw Material
PE
Maximum Folding Width of Film
1000mm
Screw Diameter
55mm
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, TUV
After-Sales Service Provided
Engineers Available to Service Machinery
Machine Inverter Brand
Made in Taiwan
Screw Length Proportion
28:1
Film Blowing Thickness
LDPE0.015-0.20mm, HDPE0.008-0.05mm
Inverter
Delta
Guarantee
One Year
Motor Brand
Made in China
Optional Device
Corona
Optional Device1
Rotary Die Head
Optonal Device2
Automatic Changer
Transport Package
Wrapping Film Packing or Packed in Wooden Case
Specification
CE ISO9001: 2008 SGS, TUV
Trademark
SILSTAR
Origin
Made in China
HS Code
84773090
Product Description
Product Description
1. Extruder from silstar is used to blow PE film and has been widely used for producing, packing film, bag or film for textile and clothing and other packing material.
2. The main motor controlled by an inverter improve the speed of regulating the stability of the main motor and save 30% electric power.
3. The screw and barrel adopt 38 CrMoAl which has been nitrogen treated and the traction frame adopts lift type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
4. Automatic rewinder, changing roll by machine without labor.
Product Parameters
| Model | GBCA-600 | GBCE-1000 | GBCE-1200 | GBCE-1600 |
| Screw diameter | 45mm | 55mm | 65mm | 75mm |
| Screw length proportion(L/D) | 28:1 | 28:1 | 28:1 | 28:1 |
| Film-blowing width | 100-600mm | 300-1000mm | 300-1200mm | 300-1600mm |
| Film-blowing thickness | LDPE0.015-0.20mm HDPE0.008-0.05mm | |||
| Output | 10-45kg/hour | 20-60kg/hour | 20-80kg/hour | 50-100kg/hour |
| Main motor power | 11kw | 22kw | 37kw | 45kw |
| Dimension of the machine | 5000×1500×4000mm | 5400×2800×4800mm | 5400×3000×6800mm | 6200×3400×7500mm |
| Total weight | 3000kg | 3800kg | 4200kg | 4800kg |
Detailed Photos
Company Profile
Silstar machinery founded in 1997, covers an area of 32,000 m2,we focused on film blowing machine, bag making machines for plastic bag, and compostable bag. We have obtained 2 invention patents on garbage bag making machine and labeling machine, and 13 utility model patents, which has become one of the leading companies in this industry. By now It has already got the CE certification, ISO9001 quality certification, and ISO45001 safety management certification.
Certifications
Packaging & Shipping
Exhibition
FAQ
| 1. Q: How long will your engineer reach our factory? A: Within 7-15 days after the machine arrives at your factory. |
| 2. Q: How many days will you finish installing? A: We will finish installation and training within 3-7 days. |
| 3. Q: What should we charge for your engineer? A: You should charge for the cost of our engineer's visa, round trip tickets, accommodation, and also their salary of 100USD one day per person. |
| 4. Q: How long is your machine's warranty period? A: All our machines have one year guarantee, starting from the finished installation. |
| 5. Q: How could we do after one year warranty period? A: We also can do service for you, but you need to pay the salary for my technician 100USD/day. |
| 6. Q: How could we do if the parts are broken within the warranty? A: We would express the free replacement parts during the warranty date. |
| 7. Q: Does your engineer understand English? A: Our engineer understands a little English. All of our engineers have more than five years machine installation experience. |
| 8. Q: How many workers do we need to run those machines? A: Usually need one person to operate the machine. |
| 9. Q: How do we solve the machine problem after your engineer leaves? A: Generally speaking, there will be no problem after finishing the installation. In case you have any problem. You can contact our sales at any time. Our engineer will take a solution video according to your description. |
| 10. Q: How can I visit your company? A: It takes 30 minutes by train from Shanghai to our factory. |
