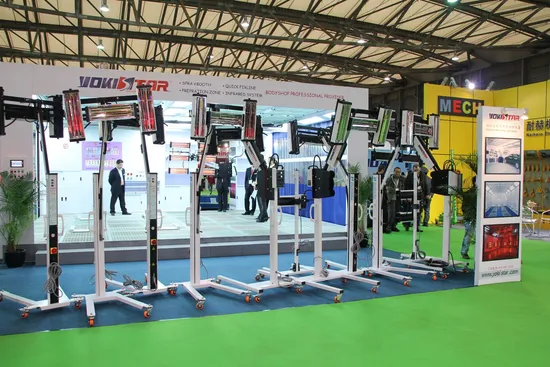

Yokistar Moveabel Infrared Curing Lamp for Spray Paint Booth

Product Description

Technical Parameter: Temperature Rise Time: 5-15 min (50-80ºC)
Drying Time for different coating
Putty: 8-10 min
Base Coat: 8-15 min
Top Coat: 15-20 min
Clear Coat: 8-10 min
Baking Area: 1200 x 700 mm
Baking Distance: 0.5-0.8m
Input Voltage: 220-240V,50HZ,1KW
Cable: 5M long , specification is 3x1.5 m2,can be changed as per different country demand.
Gross Weight: 54KG
Key Features:
The heat reflection plate with multi angle design to make the heat reflecting rate more than 80%.
The shortwave infrared lamp is CE approved; rising temperature is faster and heating time is shorter; the using life is more than 5,000 hours; suitable for small area baking.
The cassette is made of aluminium alloy for durability and good thermal diffusivity; the baking time and power of heating lamp can be adjusted by knob switch for different coating requirement.
The "H" style basement provides a smooth and solid working condition.
Equipped with a special device to prevent cassettes from falling down.
The installation and operation are very easy.
Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.Custom Design paint booth is our super advantage.
