Automatic 4 Heads Filling Capping Machine for Pet Water Small Scale Bottle
Basic Info.
Model NO.
FK-6ZL
Type
Volumetric Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Surface Type
Packaging Container Lifting Structure
Chute Pneumatic Combination Lifting
Structure
Linear
Packaging
Bottle
Packaging Material
Plastic
Product Name
Automatic Plastic Bottle Water Filling Machine
After-Sales Service Provided
Video Technical Support Online Support
Function
Automatic Filling Material
Bottle Type
Pet Plastic Bottle Glass Bottle
Filling Nozzles
2/4/6/8/10/12(Customized)
Filling Speed
1000-6000 Bottles/H
Filling Liquid
General Solution
Certification
CE ISO9001
Control
PLC+ Touch Screen+Transducer
Transport Package
Wooden Case
Specification
100*100*100
Trademark
FK SPEEDA
Origin
Dongguan
HS Code
8422303090
Packaging & Delivery
Package Size
180.00cm * 90.00cm * 160.00cm
Package Gross Weight
280.000kg
Product Description

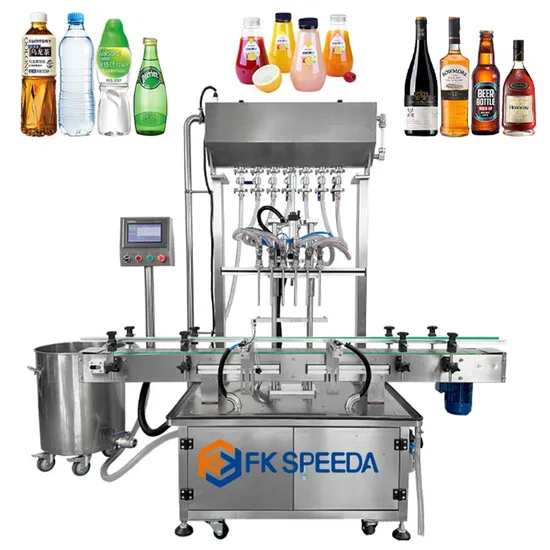

Introducing the Revolutionary Automatic 6-Head Liquid Filling Machine! Advanced Gravity Filling Machine for Optimal Performance This state-of-the-art machine employs an innovative gravity filling technique, specifically tailored for non-viscous or low-viscous liquid applications. It ensures precise filling measurements, providing you with unparalleled accuracy.Every fill is perfectly accurate, with no bubbles and absolutely no leakage. This versatile machine adeptly accommodates containers of various specifications, allowing seamless transitions between different filling needs.
Experience quick changeovers with just a few minutes to switch filling specifications. The short filling cycle time, combined with high production capacity, means you can meet demanding production schedules effortlessly. Adjusting filling volumes is a breeze-no spare parts required. Each filling head comes with a precision bottle mouth station, guaranteeing precise alignment and fill accuracy. Note:
The filling range and speed can be customized to meet your unique requirements, with the flexibility to design diverse filling heads.
PRODUCT SPECIFICATIONS: Unleash the power of precision engineering with our exceptional machinery.
| Machine model | capacity (100-500ml) | Power/voltage | air consumption | machine weight | filling accuracy |
| FK-GZH-4 | 900-1200/h | 1KW/220V | 1mpa | 300KG | ±1% |
| FK-GZH-6 | 1200-1800/h | 1.2KW/220V | 1.2mpa | 350KG | |
| FK-GZH-8 | 1800-2400/h | 1.4KW/220V | 1.4mpa | 500KG | |
| FK-GZH-10 | 2400-3000/h | 1.6KW/220V | 1.6mpa | 550KG | |
| FK-GZH-12 | 3000-3600/h | 1.8KW/220V | 1.8mpa | 600KG | |
| FK-GZH-14 | 3600-4200/h | 2KW/220V | 2mpa | 650KG | |
| FK-GZH-16 | 4200-4800/h | 2.2KW/220V | 2.2mpa | 700KG | |
| FK-GZH-18 | 4800-5400/h | 2.4KW/220V | 2.4mpa | 750KG |
