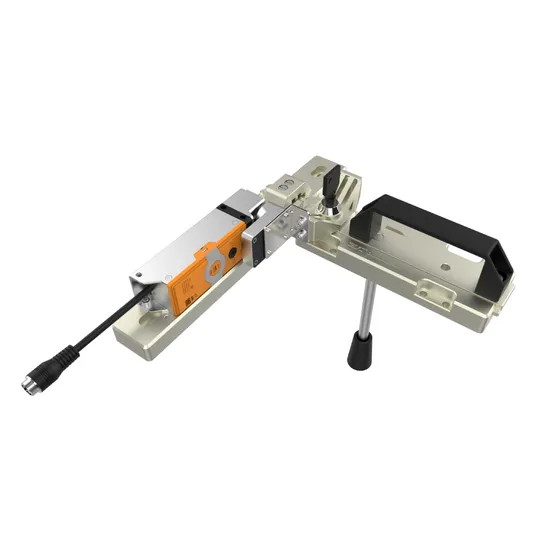

TRL1+TSL1 Electromagnet lock + metal latch

Product Description

Functional features
Safety level : SIL3 or PLe
RFID Technology
(standard/uniqueness )coding types
PNP/NPN output methods
F7500N/2000N Lock Force
Power to lock type and Power to release type
Air plug or direct line
protection Level : IP 67

Technical parameter
Security level
Standards	IS0 13849-1 IEC/EN60947-5-3
Safety classification	ISO 13849-1 compliant class 4 switch/SIL3 dual channel interlock for PLe/PLd
Certificate	CE CQC
Protection
Safety short-circuit Overheat protection stops protection and restarts Current limit Reverse polarity protection Overload protection Transient noise protection Over Voltage Protection Failure pulse protection
Output
Security output	2 way Redundant PNP or NPN output (Self diagnostic test pulse)
AUX output	1 way PNP or NPN output(door close / door lock / auxiliary output fault indication)
Technical parameters
Deviation of bolt insertion		Max.:±2mm
Lock hold force Fmax(IS014119)		9750N or 3000N
Lock hold force Fzh(IS014119)		77500N or 2000N
Minimum operating radius of revolving door		≥220mm
Output current		DC 24V±15%
Rated power		4.6W(no load)
Output current		Max.:200mA
Output conduction voltage drop		<2.5V@200mA
Leakage current		<100uA
Operating Frequency		0.5Hz
Response time		100ms(Independent work)
Risk time		100ms
Start-up time		3.5s
Protection level		IP67
Operating temperature		0...+55ºC
Relative humidity		5...95%
Materials		Nylon/Zinc alloy/Stainless steel
PFHd		<4.2x10 -8
MTTFd		288 years

Product application cases
Q: Can i get some samples ?/Do you offer samples available?
A: Yes, we can provide sample, but the cost of the sample is paid by the customer, if you feel satisfied and have the next mass production order, we can deduct the cost of the sample.
Q: How is the warranty?
A:our warranty time is 18 months. If the product has quality problem within 18 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
Q:How about the quality of the products?
A:we have the certification of CE,CCC,CQC,EU,TUV,UL, and products Safety Level archived Ple,SIL,Type 4,Cat.4 etc.
Q: What is the quality guarantee?
A: We are an ISO 9001-2015 ,ISO 14001 -2015 certified manufacturer, we have strict quality control system. Besides calibration, each set product we also do aging test before shipment, so the quality is guaranteed.
Q: Do you have any products in stock?
A: Depend on the order quantity.With two 400-square-meter warehouses and 4 production lines with a monthly output of 2.3 pieces, large orders can be delivered on time.
Q: Can I be your distributor?
A: Yes, Please get in touch with us,we are looking for distributors in oversea market.
