Jwc-Nk450-Eb 300-400PCS/Min Stable Working Speed Elastic Ear Production Line Baby Nappy Equipment
| US$600,000.00-700,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JWC-NK450-EB
Product Object
Baby
Designed Speed
500PCS/Min
Production Speed
300-400PCS/Min
Computer Control Panel
Yes
Product Specification
S, M, L, XL
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
Diaper Machine Color
Ivory White
Machine Direction
to Be Defined
Machine Power Source
380V/50Hz
Process
Baby Diaper Machine
Usage
98%
Type
Baby Diaper Machine
Processing Technology
Laminated Machine
Effciency
90%
After-Sales Service Provided
Video Technical Support
Service Provided
Field Maintenance and Repair Service
Transport Package
Transparent Film for Baby Diaper Machine
Specification
S, M, L, XL
Trademark
JWC
Origin
China
HS Code
84418090
Production Capacity
30 Sets
Product Description

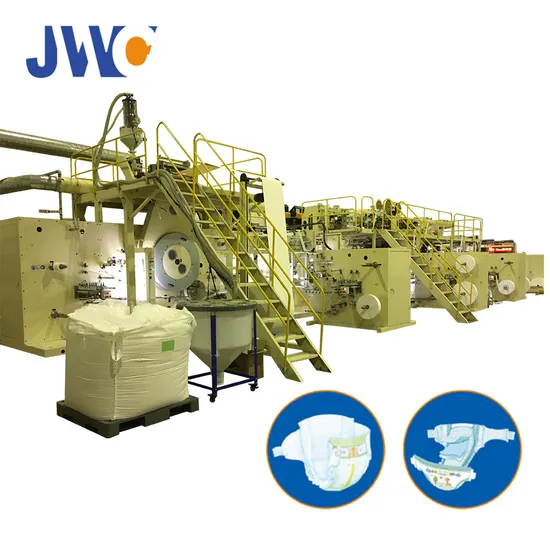

JWC-NK450-EB 300-400pcs/min Stable Working Speed Elastic Ear Production Line Baby Nappy EquipmentProduct Description
This JWC-NK450-EB Semi servo T Shape Ear Elastic Waistband Baby Diaper Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This JWC-NK450-EB Semi servo T Shape Ear Elastic Waistband Baby Diaper Machine can produce 3-5 sizes diapers according to the order. This production line can realize 100%full automatic control.
| 1.Machine frame structure and main characters 2. Crusher system 3. Fluff forming system 4. SAP feeding system 5. Bottom tissue feeding, roll diameter φ800mm 6. Upper tissue, roll diameter φ800mm 7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue 8. ADL feeding, roll diameter φ800mm 9. Fluff core inner cut device 1 set,adopt frame type structure, increase the cutter life 10. Leak cuff unit 11. Hydrophilic nonwoven supply, roll diameterφ800mm 12. Side tape supply: 13. Elastic ear material supply unit 14. Frontal ear material supply | 15. Three pieces complex, two sides fixing unit, adhesion pressing 16. Bottom film supply 17. Frontal tape supply: 18. Surface layer, absorption core, bottom film pressing 19. One set products cutting unit 20.1set pressing unit(Y shape roller360) 21. Product vertical tri-fold 22. 1 set pressing unit(Y shape roller 200) 23. Transmission unit 24. 1 set final cut unit 25. Horizontal fold transmission unit 26. 2 set horizontal fold unit 27. Product transmission unit 28. Auto rejection exit (pneumatic) |
| 1 | Design speed | 500pcs/min |
| 2 | Stable working speed | 300-400pcs/min |
| 3 | Qualified rate | 97% exclude the wastage due to the glue applicators and materials splicing joint |
| 4 | Efficiency | 85% |
| 5 | installation capacity | 210KW |
| 7 | Electricity | 380V 5%50HZ |
| 8 | Wire | Three phases four wires 380V/50Hz (ground wire) |
| 9 | Air pressure | 0.6Mpa |
| 10 | Total weight | About 68tons |
| 11 | Machine size | 38*8*4.5 M(L*W*H) |
| 12 | Working space | 42*11*6 M (L*W*H) |
| 13 | Machine color | Rice white ,can be changed by order |
| 14 | Product size | 4sizes |
| 15 | Containers | 6X40HQ |
| Auto lubricating System Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system | Human-Machine Interface Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen | Materials automatic feeding System Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility |
| Name | Brand | Origin | |
| 1 | Servo motor | Mitsubishi | Japan |
| 2 | Auto web guider | LECO | China |
| 3 | Touchable screen | Banner | USA |
| 4 | PLC controlling system | Mitsubishi | Japan |
| 5 | Sensor | Banner | USA |
| 6 | Safety production | Shneider | France |
| 8 | Cutter raw material | D2 | USA |
| 9 | Gear according to usage | BEM/NSK/SKF | Germany/Japan/Sweden |
| 10 | Timing belt | Optibelt or Gates | Germany/USA |
| 11 | Low voltage electronic | Shneider | France |
| 13 | Temperature controlling system | Omron | Japan |
| 15 | Pressure regulating valve | Airtac | Chinese Taiwan |
| 16 | Pneumatic element | Airtac | Chinese Taiwan |
| 17 | Solenoid valve | Airtac | Chinese Taiwan |
| 18 | Moisture separator | Airtac | Chinese Taiwan |
| 19 | Automatic fault alarm | Mitsubishi | Japan |
Final products&raw materials
