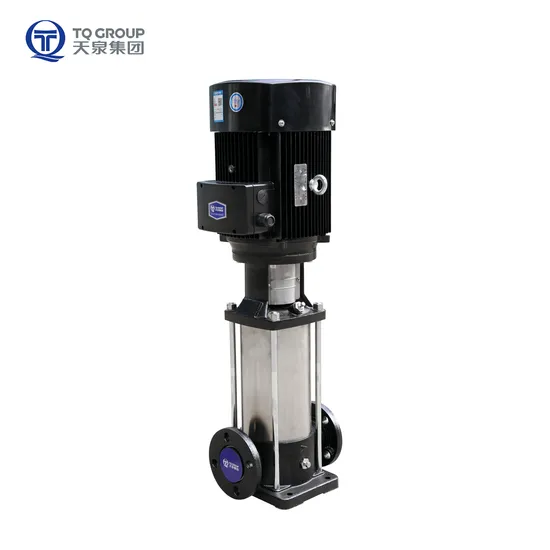

32m3h 2.5inch Vertical Multi-Stage Stainless Steel High Pressure Water Pump 5.5HP/7.5HP/10HP/15HP/20HP/25HP/30HP/40HP Multistage Pump
| US$500.00-5,000.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
TDL(F)32
Max.Capacity
5 M³/H
Driving Type
Motor
Material
Stainless Steel
Structure
Multistage Pump
Assembly
Pipeline Pump
Power
Electric
Type
Non-Self Priming Pump
Application
Clarified Water Pump
Theory
Centrifugal Pump
Max Ambient Temperature
+40
Max Altitude
up to 1000m
Outlet Diameter
2.5 Inch DN65
Transport Package
Wooden Case
Trademark
tqpumps
Origin
China
HS Code
8413709910
Packaging & Delivery
Package Size
50.00cm * 60.00cm * 80.00cm
Package Gross Weight
150.000kg
Product Description
Product Description TDL/TDLF pumps are non-self-priming vertical multistage centrifugal pumps with suction and discharge ports on the same level. This series works for water supply, firefighting, and water-pressure boosters. The pump comprises laser-welded stainless steel impellers, chambers, and a premium efficiency motor. The IEC-standards motor's pump stub shaft and motor shaft are directly close coupled. All pumps are equipped with a cartridge-type mechanical seal for easy maintenance. TDL is suitable for non-corrosive liquids and TDLF for mildly corrosive liquids.Product Advantage
Hydraulic Coverage
Product Structural Drawing
Product Parameters
| Model | Motor Power (kW) | Flow (m3/h) | 16 | 20 | 24 | 28 | 32 | 36 | 40 | |
| TDL32 TDLF32 | -1 | 1.5 | Head (m) | 12.5 | 12 | 11.5 | 10.5 | 9.5 | 8 | 6 |
| -1 | 2.2 | 15.5 | 15 | 14.5 | 13.5 | 12.5 | 11 | 9.5 | ||
| -1 | 3 | 27 | 26 | 24.5 | 22.5 | 20 | 16.5 | 12.5 | ||
| -2 | 4 | 32 | 31 | 30 | 28.5 | 26 | 23 | 19.5 | ||
| -1.5 | 5.5 | 46.5 | 45 | 43 | 40.5 | 3 | 32 | 26.5 | ||
| -3 | 5.5 | 49 | 47.5 | 46 | 43.5 | 7 | 35.5 | 30 | ||
| -2 | 7.5 | 61 | 59 | 57 | 53 | 47.5 | 41.5 | 33.5 | ||
| -4 | 7.5 | 66 | 64 | 62 | 59 | 54 | 48 | 40.5 | ||
| -2.5 | 11 | 78 | 76 | 73 | 68 | 62 | 54 | 44 | ||
| -5 | 11 | 84 | 81 | 78 | 74 | 68 | 60 | 51 | ||
| -3 | 11 | 96 | 93 | 89 | 83 | 76 | 66 | 55 | ||
| -6 | 11 | 101 | 98 | 94 | 89 | 82 | 73 | 62 | ||
| -3.5 | 15 | 113 | 110 | 105 | 99 | 90 | 79 | 65 | ||
| -7 | 15 | 118 | 115 | 111 | 105 | 96 | 86 | 73 | ||
| -4 | 15 | 131 | 127 | 121 | 114 | 104 | 92 | 76 | ||
| -8 | 15 | 136 | 132 | 127 | 120 | 110 | 98 | 83 | ||
| -4.5 | 18.5 | 148 | 144 | 138 | 130 | 118 | 104 | 87 | ||
| -9 | 18.5 | 154 | 149 | 143 | 136 | 125 | 111 | 94 | ||
| -5 | 18.5 | 166 | 161 | 154 | 145 | 133 | 117 | 97 | ||
| -10 | 18.5 | 171 | 167 | 160 | 151 | 139 | 124 | 105 | ||
| -5.5 | 22 | 184 | 179 | 171 | 161 | 147 | 130 | 108 | ||
| -11 | 22 | 189 | 184 | 177 | 167 | 154 | 137 | 116 | ||
| -6 | 22 | 201 | 196 | 187 | 176 | 161 | 143 | 119 | ||
| -12 | 22 | 207 | 201 | 193 | 182 | 168 | 150 | 127 | ||
| -6.5 | 30 | 219 | 213 | 204 | 192 | 176 | 155 | 130 | ||
| -13 | 30 | 224 | 218 | 210 | 198 | 182 | 162 | 137 | ||
| -7 | 30 | 236 | 230 | 220 | 207 | 190 | 168 | 141 | ||
| -14 | 30 | 242 | 235 | 226 | 214 | 197 | 175 | 148 | ||
| -7.5 | 30 | 254 | 247 | 236 | 223 | 204 | 181 | 151 | ||
| -15 | 30 | 260 | 252 | 242 | 229 | 211 | 188 | 159 | ||
| -8 | 30 | 271 | 264 | 253 | 238 | 218 | 193 | 162 | ||
| -16 | 30 | 277 | 269 | 259 | 244 | 225 | 200 | 170 | ||
