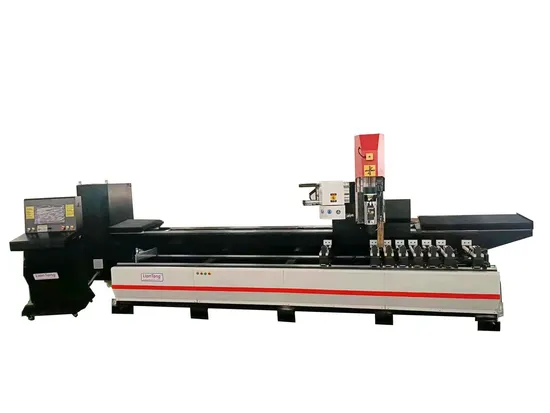

3-Axis Doors & Windows & Curtain Wall, Aluminum/Aluminium Alloy CNC High Precision Drilling and Milling Machining Center Making Machine

Product Description

Product Description
1.High machining precision
------Length accuracy±0.01mm, roundness perpendicularity±0.05mm
2.Intelligent tool changing system
------The intelligent tool changing system can replace different tools in the process of processing to meet different processing requirements
3.Simple operation
------High degree of automation, simple operation
4.Having a professional team
------The company has a professional mechanical and electrical team, can be customized according
to customer needs suitable equipment to meet the production requirements

1.This machine is suitable for processing high precision door and window curtain wall household aluminum.
2.The high-speed air-cooled motorized spindle with Italian technology and bearings can complete various drilling and milling processes with high quality.
3.Imported high-quality AC servo motors, ball screws, linear rails and bearings are used to ensure accuracy.
4.The cooling spray system can be used to cool the tool.
5.Adopt the bamboo hat type tool store to change the tool automatically, and the tool store moves with the column; Suitable for quick tool change during machine tool processing;

Product Parameters

Item		Unit	CNC318
Machinable size	X	mm	4000
	Y	mm	400
	Z	mm	300
Machining accuracy	positioning	mm	±0.02/500
	Repeated positioning	mm	±0.02/500
	Drilling and milling perpendicularity	mm/mm	0.05/100
	cylindricity	mm	±0.05
	Surface roughness	um	Ra 6.3 um
Feed rate	X axis	m/min	48
	Y axis	m/min	28
	Zaxis	m/min	28
spindle	Power/speed	kw/rpm	9.0/24000
Tools	Automatic tool change	Tool handle ISO30	8
Servo motor	X	Kw	1.00
	Y	Kw	1.00
	Z	Kw	1.00
Drill cutter stuck head	Max diameter	mm	ER30 20 /ER25 16
Voltage/total power			380V 50HZ/9.5KW
Required power source	Power	KVA	15
	Air pressure	Kg/cm2	5~6

Company Profile

Packaging & Shipping
FAQ
Q: Are you manufacturer or trading company?
A: We are a professional manufacturer dedicated to the research and producing of high quality aluminum cutting machines for 20 years.
Q: Can I have your quotation?
A: First, please offer us the information of your cutting material and its size,without these parameter, we are not able to recommend you the suitable machine.
Q: Do you have overseas service? How to provide after-sales service? A: Yes, we normally help our customers to solve the problems through phone, Email, skype, internet video. Very high efficiency.
Q: How long is the equipment warranty?
A: We offer one year guaranteen for the main parts, within one year, if component of the machine broken, we freely offer the component, but the delivery fee should be paide by client.
Q: What is the voltage and Hertz in your country?
A: In China,the Voltage is 380V(3 Phase), the Hertz is 50Hz, we can change the voltage and Hertz according to your requirment.
Q: What is the delivery lead-time?
A: Aluminum cutting machine: Normally 5-30 days upon receipt of your orders and its deposit. Saw blade: 5-30 days(depending on availability of saw blade stock or material stock) upon receipt of your order and deposit.
Q: What is your payment terms?
A: We accept L/C, T/T, D/P, Western Union and PayPal. As T/T, 30% deposit, 70% of balancepaid before shipment.
Q: Can you customize for us?
A: Yes.
Q: Can you OEM/ODM for us?
A: Yes
Q:Can I get a discount?
A:Yes, for the yearly order quantity of more than 5 sets, please contact us to get the best price.
Q:Do you inspect the finished products?
A:Yes, each step of production and finished products will be coming out inspection by the QC department before shipping.
Q: Do you provide equipment operation training? Do you have the operation instruction book in English?
A: Currently we can do on-line technical operation training for customer's staff. Yes, we have English version operation instruction book for each cutting machine.
