Paper Machine Clothing Red Color Flat Type Dryer Fabric

Paper Machine Clothing Red Color Flat Type Dryer Fabric

US$9.00-100.00 1 Piece (MOQ)

Basic Info.

Model NO.
LZPMC
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Surface Treatment
Heat Setting
Manufacturing Process
Woven
Material
Polyester
Machine Speed
Below 2000m/Min
Layer
1/2/3
Paper Kinds
All Kinds of Paper
Srtucture
Woven and Needling
Transport Package
Standard Seaworthy Package
Specification
customized
Trademark
LEIZHAN PMC
Origin
China
HS Code
591190
Production Capacity
50000sets/Year

Packaging & Delivery

Package Size
255.00cm * 150.00cm * 50.00cm
Package Gross Weight
45.000kg

Product Description

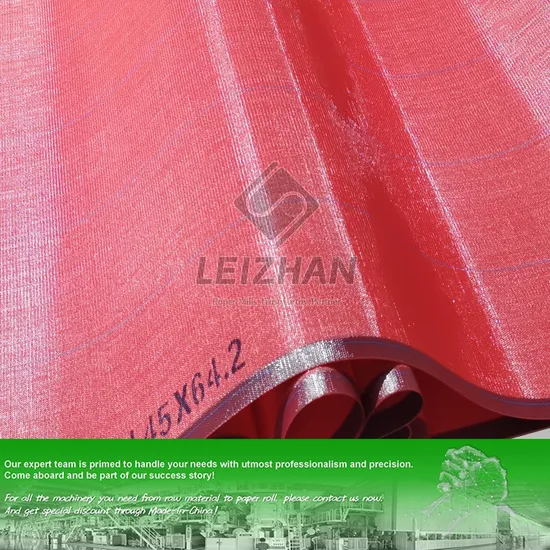

Product Description Flat yarn dryer screen's application in paper machine:
Polyester dryer fabric is made with the latest non-woven technology and equipment in the world. Polyester material is one of the most advanced drying and filtration materials in the world. Polyester screw dry net adopts high-quality anti-hydrolysis polyester mono-filament, which is formed by forming, weaving, finishing, and shaping. It has unique properties:
1) Acid resistance, alkali resistance, wear resistance, high-temperature resistance, and long service life, which is several times the woven dry blanket, canvas, and ordinary dry net.2) Flat mesh surface, high tensile strength, good permeability, and high heat transfer efficiency.3) Easy to install and use, with no imprinting on the interface, and no deformation during use.
Detailed Photos
Product Parameters
Polyester Dryer Fabric
Weaving Kind Fabric Model Wire Diameter mm Density(root/cm) Tensile strength(N/cm) Air Permeability Weight
Kg/m2
Thickness
mm
Warp Weft Warp Weft Surface Joint Socket Screw-ring interface M3/m2h CFM
Flat wire dryer fabric 4106-2 0.35x0.68 0.50 19.6 15.7 2200 1500 900 5500 345 1.10 1.62
15505 0.25x0.40 0.50 17 13.5 2000 1500 900 6500 406 0.75 0.83
20654 0.33x0.52 0.65 22 7.5 2000 1400 800 10000 625 1.02 1.35
18688 0.30x0.58 0.35 20 18.5 2000 1400 800 1600 100 1.2 1.40
0.68
16904 0.29x1.06 0.90 15.2 8.6 2600 1800 1500 1920 120 1.33 1.54
0.98
